ATX motherboard ERX610-C741
Intel® Xeon4th generation Intel® Core™x86

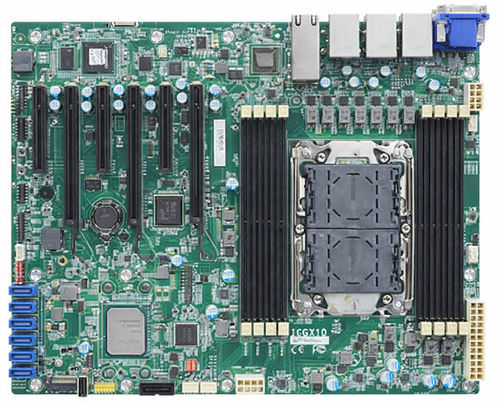

ATX motherboard - ERX610-C741 - DFI - Intel® Xeon / 4th generation Intel® Core™ / x86
ATX motherboard - ERX610-C741 - DFI - Intel® Xeon / 4th generation Intel® Core™ / x86
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Format
ATX
Processor
Intel® Xeon, 4th generation Intel® Core™, 5th generation Intel® Core™, Intel® architecture, x86
Chipset
Intel®
Memory
DDR5 SO-DIMM, DDR5 SDRAM, RAM, DDR4-RDIMM
Extension slot
M.2, M.2 Key M, PCI Express, PCI Express 8x
Applications
industrial, server
Memory frequency
DDR5 5600 MHz
Connectivity
USB 2.0, gigabit Ethernet, USB 3.2, USB 3.1, HDMI, VGA, RS-485, RS-232, GbE, DisplayPort, Ethernet

Description

The ERX610-C741 is an ATX server motherboard by DFI for edge and industrial server applications, supporting 5th/4th Gen Intel® Xeon® Scalable processors and advanced out-of-band management.

Key features / Technical specifications

  • Processor: Supports 5th Gen and 4th Gen Intel® Xeon® Scalable Processor Families; LGA 4677 socket; TDP up to 270W. Examples: Intel® Xeon® Gold 6548Y+, 6548N, 6538N, 6530, 6526Y, 5520+, 5515+, 4516Y+, 4514Y, 4510, 4510T, 4509Y; 4th Gen examples: Intel® Xeon® Gold 6448Y, 6438N, 6430, 6428N, 6426Y, 6418H, 5420+, 5418N, 5418Y, 5415+, 4416+, 4410T, 4410Y.
  • Chipset: Intel® C741 chipset.
  • Memory: 8 x ECC RDIMM slots, up to 1024 GB; DDR5 support up to 5600 MHz.
  • BIOS: Insyde.
  • Management / BMC: BMC AST2600; IPMI and Redfish out-of-band (OOB) remote management supported.
  • Display: Single DisplayPort output (1 x DP).
  • Expansion: 3 x PCIe x16 (Gen5), 3 x PCIe x8 (Gen5); 2 x M.2 M-key 2280 for NVMe/SSD.
  • Audio: ALC888S codec; 1 x front audio (internal).
  • Ethernet controllers: 2 x Intel® I210AT + 2 x Intel® E610-XAT2; IPMI LAN: RTL8211F.
  • Rear I/O: 2 x GbE + 2 x 10GbE; 1 x dedicated IPMI LAN; 1 x RS-232/422/485 (DB-9); 4 x USB 3.2 Gen1; 1 x DP.
  • Internal I/O: 1 x RS-232/422/485; 2 x USB 3.2 Gen1; 2 x USB 2.0; 1 x vertical USB 2.0; 1 x front audio header.
  • SATA / Storage: 4 x SATA 3.0 with RAID 0/1/5/10 support; 2 x M.2 M-key 2280 for NVMe/storage expansion.
  • DIO / SMBus: 16-bit DIO; 1 x SMBus.
  • Security: TPM 2.0 supported.
  • Power & Form factor: ATX form factor.
  • Environment: Operating temperature 0 to 60°C.
  • Mechanics / Dimensions: 305 x 244 mm; PCB/top-side/bottom-side heights: as indicated by manufacturer.


Packing list

  • ERX610-C741 motherboard (770-ERX6101-000G)
  • 2 x M.2 screws (A32-112016-041G)
  • 2 x M.2 standoffs (A33-725019-090G)
  • 1 x I/O shield (A49-ERX610-000G)
  • 1 x SATA data cable (500 mm) (332-553001-005G)
  • 1 x cooler carrier (A51-099027-000G)


Country of origin / Options

  • Country of origin: Taiwan.
  • Optional CPU cooler example: A71-101164-000G for LGA 4677 (118 x 82 x 106 mm).
