Storage server RM645-SO630
networkEDGErack-mount

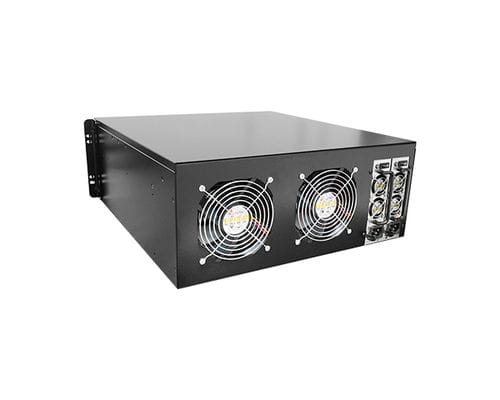

Storage server - RM645-SO630 - DFI - network / EDGE / rack-mount
Storage server - RM645-SO630 - DFI - network / EDGE / rack-mount
Storage server - RM645-SO630 - DFI - network / EDGE / rack-mount - image - 2
Storage server - RM645-SO630 - DFI - network / EDGE / rack-mount - image - 3
Storage server - RM645-SO630 - DFI - network / EDGE / rack-mount - image - 4
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Type
storage, network, EDGE
Mounting
rack-mount, 4U
Processor
AMD EPYC™
Applications
industrial
Network
PCIe, gigabit Ethernet, NVMe, SATA
Memory
DDR4 DRAM
Motherboard format
ATX
Operating system
Linux, Windows 10, Windows server
Other characteristics
SATA, USB 3.0, NVMe, high-availability, RS232, RS485
RAM capacity

Max.: 256 GB

Min.: 0 GB

Description

The RM645-SO630 is a 4U short-depth rackmount edge server from DFI, engineered for edge and server applications and powered by AMD® EPYC™ Embedded processors. It offers flexible expansion, rich I/O, and long-term CPU lifecycle support for industrial deployments.

Key features
  • 4U short-depth edge server form factor designed for ATX platforms.
  • Powered by AMD® EPYC™ Embedded 3451 (16-core) or 3351 (12-core) processors.
  • Support for up to 256GB DDR4 via 8 RDIMM/UDIMM slots.
  • Flexible expansion with 3 PCIe x16 (up to 6 PCIe x8) slots, 1 PCI, and 2 M.2 M-Key slots.
  • Accommodates up to 8 hot-swap 2.5-inch drive bays for high-availability storage.
  • Enhanced connectivity including 2 COM ports and 6 USB 3.1 Gen1 ports.
  • 10-year CPU lifecycle support (through Q1 2031).


Technical specifications
  • Processor: AMD® EPYC™ Embedded 3451, 16 Core, 32 Threads, 2.14GHz (3 GHz), 80–100W; AMD® EPYC™ Embedded 3351, 12 Core, 24 Threads, 1.9GHz (3 GHz), 60–80W.
  • Memory: 8 DDR4 RDIMM/UDIMM up to 256GB.
  • BIOS: Insyde.
  • External Storage: 5 x SATA 3.0.
  • Internal Storage: 1 x M.2 2280 M Key (PCIe x4 NVMe); 1 x M.2 2280 M Key (SATA/PCIe x2 NVMe).
  • Expansion Interface: 3 x PCIe x16 (up to 6 PCIe x8); 1 x PCI.
  • Ethernet Controller: 2 x Intel i210AT.
  • Front I/O - Ethernet: 2 x GbE.
  • Front I/O - Serial: 1 x RS-232/422/485 (DB-9); 1 x RS-232 (DB-9).
  • Front I/O - USB: 6 x USB 3.1 Gen1.
  • LED Indicators: 1 x Power LED; 1 x HDD LED.
  • Buttons: 1 x Power Button.
  • Cooling: 12 cm fans x 2.
  • Watchdog Timer: System Reset, programmable via software from 1 to 255 seconds.
  • Security: Infineon TPM 2.0 (optional).
  • Power Supply: ATX PS/2 or Mini redundant PSU.
  • OS Support - Microsoft: Windows 10; Windows Server 2019. OS Support - Linux: Optional.
  • Operating Temperature: 0 to 40°C.
  • Storage Temperature: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery.
  • Relative Humidity: 5 to 90% RH (non-condensing).
  • Construction: Heavy industrial steel.
  • Mounting: Flexible hold down bar.
  • Dimensions (W x H x D): 481.6 x 175.6 x 470.8 mm.
  • Weight: TBD.
  • Color: Black.
  • Shock: Operating 3G; Non-operating 5G.
  • Vibration: Operating random 5–500Hz 1G; Non-operating sweep sine 10–500Hz 1.5G.
  • Package Drop: ISTA Project 1A.
  • Certifications: TBD.
  • Packing List: 1 RM645-SO630 System Unit.
  • Country of Origin: Taiwan.
