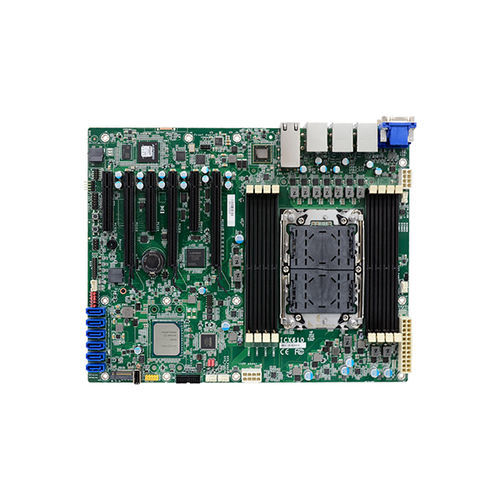

ATX motherboard ICX610-C621A

Intel® XeonIntel®DDR4 SDRAM

The ICX610-C621A is a server-grade ATX motherboard from DFI engineered for high-performance edge computing, AI inference and high-end inspection equipment. It emphasizes scalability, high-speed I/O and out-of-band remote management for industrial and medical deployments.

Key highlights

• Optimized for edge AI, deep learning and high-end inspection workloads (AOI, CT, MRI).
• Scalable ATX platform with multiple expansion interfaces (PCIe Gen4, M.2, SATA) for GPUs and NVMe/SSD storage.
• Built-in out-of-band remote management (IPMI / Redfish) with BMC support for monitoring and remote firmware/BIOS updates.
• Industrial-grade lifecycle and long-term support suitable for OEM and integrator deployments.

Technical specifications

• Processor: 3rd Gen Intel® Xeon® Scalable family; LGA 4189 (Socket P+); TDP up to 205 W. Supported examples: Intel® Xeon® Gold 6338N, 6338T, 6336Y, 6330, 6330N, 6326, 6314U, 6312U, 5320T, 5318N, 5318Y, 5317, 5315Y, 4316, 4314, 4310, 4310T.
• Chipset: Intel® C621A
• Memory: 8 × 288-pin ECC RDIMM slots, up to 512 GB; DDR4 up to 3200 MHz (single channel operation per channel specification).
• BIOS: Insyde SPI 128 Mbit
• Graphics / BMC: BMC AST2500; Display: 1 × VGA (DB-15), up to 1920×1200 @ 60 Hz
• Expansion / Interface: 1 × M.2 2280 M key (SATA / PCIe Gen3 x4 NVMe); 3 × PCIe x16 Gen4 slots (#1/#3/#5), 3 × PCIe x8 Gen4 slots (#2/#4/#6). Note: PCIe #1/#2 can auto-detect as (x16/0) or (x8/x8). PCIe x8 slot is OPEN edge.
• Audio: ALC888S codec
• Ethernet / Networking: 2 × Intel® I210AT (1 GbE); 2 × Intel® X550-AT2 (10 GbE). IPMI LAN: RTL8211F
• Rear I/O: 2 × GbE (RJ-45), 2 × 10GbE (RJ-45), 1 × dedicated IPMI LAN, 1 × RS-232 (DB-9), 4 × USB 3.1 Gen1, 2 × USB 2.0, 1 × VGA (DB-15)
• Internal I/O: 1 × RS-232 (2×5-pin), 2 × USB 3.1 Gen1, 2 × USB 2.0, 1 × vertical USB 2.0 Type A, 1 × front audio header, 6 × SATA 3.0 (up to 6 Gb/s) with RAID 0/1/5/10 support, 1 × 16-bit DIO, 1 × LPC, 1 × SMBus
• Watchdog Timer: System reset, programmable interval 1–255 s
• Security: Infineon TPM 2.0
• Power: ATX type; connectors: 8-pin ATX 12V CPU and 24-pin ATX; battery: CR2032 coin cell; power consumption: TBD
• OS Support: Microsoft: Windows 10 IoT Enterprise LTSB RS5 (64-bit), Windows Server 2019; Linux: Ubuntu 20.04
• Environment: Operating: 0 to 55°C; Storage: -40 to 85°C; Humidity (operating & storage): 5–90% RH non‑condensing; MTBF: TBD
• Mechanics / Dimensions: ATX 305 × 244 mm; PCB thickness 1.6 mm; top-side height: 37.34 mm
• Standards & Certifications: CE, FCC, RoHS, UKCA
• Packing list (included): 1 × ICX610-C621A motherboard (770-ICX6101-000G), 1 × M.2 screw (A32-112016-041G), 1 × M.2 standoff (A33-725019-090G), 1 × I/O shield (A49-ICX610-000G), 1 × SATA data cable (500 mm, 332-553001-005G)
• Country of Origin: Taiwan
