EATX motherboard PR810-C622

Intel® XeonIntel® C622DDR4 SDRAM

Overview

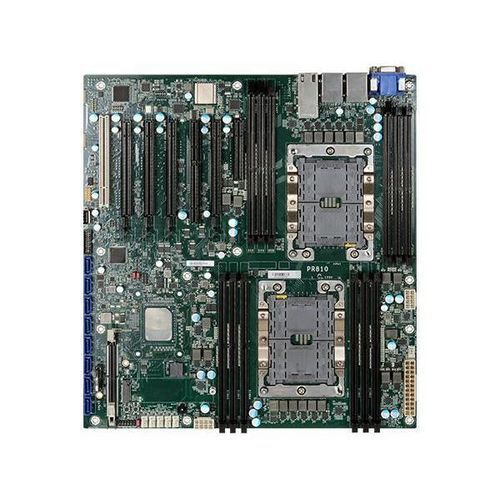

The PR810-C622 is an EATX server motherboard by DFI designed for edge server and industrial applications. It supports 1st and 2nd Generation Intel® Xeon® Scalable processors (LGA 3647), offers extensive memory capacity and multiple expansion interfaces for high-throughput I/O and storage configurations.

Key features

• Form factor: EATX (305 mm x 330 mm)
• Processor support: 1st/2nd Gen Intel® Xeon® Scalable families (LGA 3647), up to 165W TDP
• Chipset: Intel® C622
• Memory: 12 x 288-pin ECC RDIMM slots, up to 768 GB; DDR4 up to 2933 MHz; supports Intel DC Persistent Memory
• Expansion: 4 x PCIe x16 (Gen3), 1 x PCIe x8 (Gen3, open edge), 1 x PCI, 1 x M.2 M-key 2280 (PCIe Gen3 x4 NVMe/SATA), BMC module slot (SEM2500/2510), 1 x proprietary 100GbE extension slot
• Storage & RAID: 8 x SATA III (6 Gb/s) with hardware RAID 0/1/5/10 support
• Networking: 2 x Intel® 10GbE (x557-AT2), 2 x Intel® GbE (I210AT); rear I/O includes 2 x GbE (RJ-45) and 2 x 10GbE
• Rear & internal I/O: RS-232 (DB-9) rear and internal, 4 x USB 3.1 Gen1 rear, multiple USB headers, optional VGA, optional IPMI share with i210AT
• Security & management: Optional TPM 2.0, BMC module slot for remote management
• Power: Standard ATX connectors (8-pin ATX 12V, 24-pin ATX); detailed per-rail consumption in datasheet
• OS support: Windows 10 IoT Enterprise LTSC RS5 (64-bit), Windows Server 2016/2019, Linux
• Environment: Operating 0 to 40°C; Storage -40 to 85°C; Humidity 5 to 90% RH
• Reliability & certifications: MTBF 450,938 hrs @ 25°C (Telcordia Issue 4); certifications CE, FCC, RoHS, UKCA

Packing list & ordering

• Standard packing list: 1 x PR810-C622 motherboard, 1 x I/O shield, 1 x M.2 screw for 2280 (A32-112016-041G), 1 x CPU clip (348-436471-100G)
• Optional: SEM2500/2510 modules provided per ordered P/N
• Country of origin: Taiwan
• Multiple SKUs/configurations available (see ordering information for PR810-C622IR / IRV / IRI variants)

Technical specifications

• Model: PR810-C622 (EATX)
• Processor socket: LGA 3647; supports selected Intel® Xeon® Scalable Platinum/Gold/Silver/Bronze (1st & 2nd Gen)
• Chipset: Intel® C622
• Memory: 12 x 288-pin ECC RDIMM, up to 768 GB; DDR4 up to 2933 MHz; Intel DC Persistent Memory support
• BIOS: Insyde
• Display: Optional 1 x VGA
• Expansion: 4 x PCIe x16 (Gen3), 1 x PCIe x8 (Gen3, open edge), 1 x PCI, 1 x M.2 M-key 2280 (PCIe Gen3 x4 NVMe/SATA), 1 x BMC slot, 1 x 100GbE extension slot
• SATA: 8 x SATA 3 (6 Gb/s) with RAID 0/1/5/10
• Ethernet: 2 x Intel® I210AT (GbE), 1 x Intel® x557-AT2 (10GbE)
• USB: Rear 4 x USB 3.1 Gen1; Internal headers: USB 2.0 (2x), USB 3.1 Gen1 headers (2x), 1 x USB 2.0 vertical Type-A
• Serial: Rear 1 x RS-232 (DB-9); Internal 1 x RS-232
• Audio codec: ALC887
• Watchdog timer: Software-programmable system reset (1–255 sec/min)
• Security: Optional TPM 2.0
• Power connectors: 8-pin ATX 12V, 24-pin ATX; detailed current/power per rail in spec sheet
• RTC battery: CR2032
• OS support: Windows 10 IoT Enterprise LTSC RS5 (64-bit), Windows Server 2016/2019, Linux
• Operating temperature: 0 to 40°C; Storage: -40 to 85°C
• Humidity: Operating/Storage 5 to 90% RH
• MTBF: 450,938 hrs @ 25°C; 305,034 hrs @ 40°C (Telcordia Issue 4)
• Dimensions & PCB: EATX 305 mm x 330 mm; PCB thickness 1.8 mm; top side height 32 mm; bottom side 4.0 mm
• Certifications: CE, FCC, RoHS, UKCA
