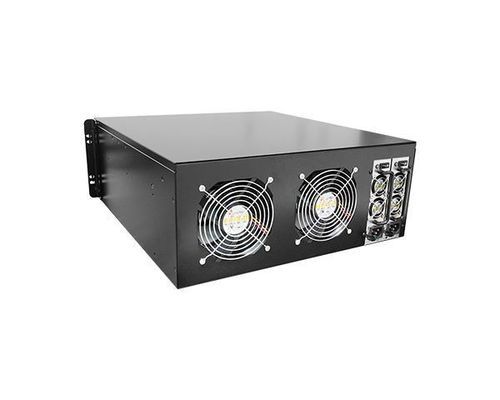

Storage server RM645-ICX610RAIDnetworkEDGE
Add to favorites
Compare this product
Characteristics
- Type
- storage, RAID, network, EDGE
- Mounting
- rack-mount, 4U
- Processor
- Intel® Xeon
- Applications
- industrial
- Network
- PCIe, 10GbE, gigabit Ethernet
- Memory
- DDR4-ECC, DDR4 3200 MHz
- Motherboard format
- ATX
- Operating system
- Linux® Ubuntu™, Windows 10 IoT, Windows server
- Other characteristics
- SATA, USB 3.0, USB 2.0, high-availability
- RAM capacity
Min.: 0 GB
Max.: 512 GB
Description
Overview
Processor & chipset
Memory & storage
Expansion & graphics
Networking & remote management
Front I/O & peripherals
Power, cooling & reliability
Operating system & software
Mechanical & environment
Standards, certifications & packaging
Order information
- The RM645-ICX610 is a 4U short-depth rackmount edge server for ATX deployments, optimized for 3rd Gen Intel® Xeon® Scalable processors. It targets applications requiring high I/O density, hot-swap storage and remote management.
Processor & chipset
- Supports 3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+). Example supported CPUs: Intel® Xeon® Gold 6338N/6338T/6336Y/6330/6330N/6326/6314U/6312U and selected 5000/4000 series.
- Intel® C621A chipset.
Memory & storage
- Memory: 8 x 288-pin ECC RDIMM, up to 512 GB; DDR4 up to 3200 MHz (single channel per memory architecture).
- Storage: External 6 x SATA 3.0 with RAID 0/1/5/10 support; internal 1 x M.2 2280 M-key; chassis supports up to 8 hot-swappable 2.5" drive bays for high-availability storage.
Expansion & graphics
- Expansion: 3 x PCIe x16 Gen4 and 3 x PCIe x8 Gen4 for full-height cards (supports 10.5" card length).
- Graphics: 1 x VGA (optional), up to 1920 x 1200 @ 60Hz.
Networking & remote management
- Front I/O controllers: 2 x Intel® I210 (GbE) and 2 x Intel® X550-AT2 (10 GbE); dedicated IPMI LAN (optional).
- Management: BMC AST2500 with IPMI OOB remote management support; IPMI uses RTL8211F PHY.
Front I/O & peripherals
- Front I/O: 1 x RS-232 (DB-9), 4 x USB 3.1, 2 x USB 2.0.
- Audio: ALC888S codec with front audio header. LEDs: power and HDD indicators. Buttons: power button.
Power, cooling & reliability
- Power: Supports ATX PS/2 or optional mini redundant PSU configurations.
- Cooling: 2 x 120 mm fans. Watchdog timer programmable 1–255 seconds. Optional Infineon TPM 2.0 for platform security.
Operating system & software
- OS support: Windows 10 IoT Enterprise LTSB RS5 (64-bit), Windows Server 2019, Ubuntu 20.04.
Mechanical & environment
- Chassis: heavy industrial steel with flexible hold-down bar. Dimensions (W x H x D): 481.6 x 175.6 x 470.8 mm. Weight: to be defined. Color: black.
- Environment: Operating 0 to 40 °C; storage −30 to 60 °C with RTC battery (−40 to 85 °C without); relative humidity 5–90% RH non-condensing.
Standards, certifications & packaging
- Shock & vibration: Operating shock 3G, non-operating 5G; vibration operating random 5–500 Hz 1G, non-operating sweep 10–500 Hz 1.5G. Package drop: ISTA Project 1A.
- Certifications: CE, FCC Class A. Packing list: 1 x RM645-ICX610 system unit.
Order information
- Country of origin: Taiwan. Contact DFI for configuration options, PSU choices and long-term support agreements.
