EATX motherboard IS-5222
Intel® XeonIntel® Q670EDDR4-RDIMM

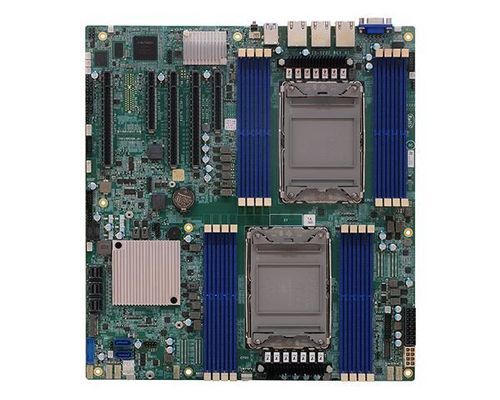

EATX motherboard - IS-5222 - DFI - Intel® Xeon / Intel® Q670E / DDR4-RDIMM
EATX motherboard - IS-5222 - DFI - Intel® Xeon / Intel® Q670E / DDR4-RDIMM
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Format
EATX
Processor
Intel® Xeon
Chipset
Intel® Q670E
Memory
DDR4-RDIMM
Extension slot
M.2, M.2 Key M, 16x PCI Express, 2 PCIe x8
Applications
embedded, server
Operating system
Windows 10 IoT Enterprise
Memory frequency
DDR4 3200 MHz
Connectivity
USB 2.0, USB 3.1, VGA, RJ45, RS-232, GbE

Description

Overview

  • The IS-5222 is an EATX server motherboard from DFI engineered for edge servers and high-performance embedded systems, supporting 3rd Gen Intel® Xeon® Scalable processors, large memory capacity and multiple high-speed expansion slots.


Key specifications

  • Processor: 3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+), TDP up to 205W.
    • Supported CPU examples: Intel® Xeon® Gold 6338N, 6338T, 6336Y, 6330, 6330N, 6326, 5320T, 5318N/5318Y, 5317, 5315Y, Intel® Xeon® Silver 4316/4314/4310/4310T.
  • Chipset: Intel® C621A.
  • Memory: 16 x 288-pin ECC RDIMM up to 1024 GB; DDR4 up to 3200 MHz (single channel).
  • BIOS: AMI 64Mb SPI BIOS.
  • BMC / Management: AST2500 BMC.
  • Display: 1 x VGA (DB-15), up to 1920 x 1200 @ 60Hz (single display).


Expansion and storage

  • 1 x M.2 2280 M key (PCIe Gen3 x1 NVMe); 3 x PCIe x16 Gen4 slots; 2 x PCIe x8 Gen4 slots.
  • SATA & RAID: 2 x SATA 3.0 (up to 6 Gb/s); RAID 0/1 supported.


Connectivity

  • Rear I/O: 2 x 10GbE (RJ-45) LAN; 1 x dedicated IPMI LAN; 2 x USB 3.1 Gen1 (rear); 1 x VGA (DB-15, rear).
  • Internal I/O: 2 x RS-232 (2x5-pin); 2 x USB 3.1 Gen1 (internal); 4 x USB 2.0 (internal).


Power, environment & mechanics

  • Power: ATX type; connectors: 8-pin ATX 12V CPU and 24-pin ATX power.
  • Operating temperature: 0 to 40°C; Storage: -40 to 85°C. Operating/storage humidity: 5–90% RH (non-condensing).
  • Mechanics: EATX form factor; dimensions 305 mm x 330 mm; PCB thickness 1.6 mm.


Compliance & documentation

  • Standards: CE, FCC. Country of origin: Taiwan. MTBF: TBD.
  • OS support: Windows 10 IoT Enterprise LTSB RS5 (64-bit).
  • Documentation: IS-5222 Datasheet (PDF).
