ATX motherboard PL610-C622

Intel® XeonIntel® C622DDR4 SDRAM

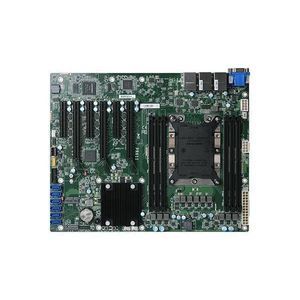

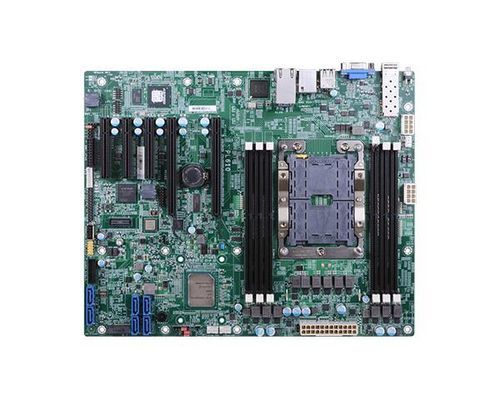

PL610-C622 is a server-grade ATX motherboard based on Intel® Xeon® Scalable processors and the Intel® C622 chipset, designed for high-agility, high-scalability computing in industrial and server applications. It targets intensive workloads such as machine vision, medical imaging, industrial automation and cloud/edge computing.

Key highlights

• Server-grade ATX platform optimized for intensive workloads and high memory capacity
• Enhanced data security and remote management support (IPMI) for server environments
• High expandability for add-in cards and NVMe/M.2 storage
• Designed for industrial, medical and machine-vision applications requiring sustained throughput

Technical specifications

• Processor: Intel® Xeon® Scalable Processor Family, LGA 3647 socket, TDP up to 145W (examples: Gold 6138T/6138/6130T/6130/6126T/6126; Gold 5120T/5119T/5118; Silver 4116T/4116/4114T/4110/4109T; Bronze 3106)
• Chipset: Intel® C622
• Memory: Six 288-pin ECC RDIMM sockets, up to 384 GB; DDR4 1600/1866/2133/2400/2666 MHz
• BIOS: Insyde SPI 128 Mbit
• Display / Graphics: 1 x VGA; single/dual display support via VGA
• Expansion / Interfaces: 2 x PCIe x16 (Gen3), 1 x PCIe x8 (Gen3, open edge), 2 x PCIe x4 (Gen3), 1 x M.2 2280 M key (PCIe Gen3 x4 NVMe/SATA)
• Storage / SATA: 6 x SATA 3.0 (up to 6 Gb/s) with RAID 0/1/5/10 support
• Network controllers: GbE: i350-AM2; 10GbE: CS4227; IPMI PHY: RTL8211F
• Rear I/O: 2 x GbE (RJ-45), 1 x dedicated IPMI LAN, 1 x Fiber 10 GbE, 1 x VGA, 2 x USB 2.0 (rear), 1 x PS/2 (mini-DIN-6)
• Internal I/O: 1 x RS-232 (2.54 mm pitch), 2 x USB 2.0 (2.54 mm pitch), 1 x vertical USB 2.0, 2 x internal USB 3.0
• Audio: Audio codec: N/A
• SMBus: 1 x SMBus
• Watchdog timer: System reset, programmable via software from 1 to 255 seconds
• Security: TPM: Infineon TPM 2.0 (optional)
• Power: ATX type; connectors: 8-pin ATX 12V and 24-pin ATX
• Power consumption (example for 5120T): Typical: 3.3V @ 0.42A (1.386 W); 5V @ 2.33A (11.65 W); 12V @ 2.34A (28.08 W). Max: 3.3V @ 0.43A (1.419 W); 5V @ 2.4A (12.0 W); 12V @ 12.51A (150.12 W)
• RTC battery: CR2032 coin cell
• OS support: Windows 10 IoT Enterprise LTSB RS1 (64-bit), Windows Server 2012 R2, Windows Server 2016, Linux
• Environment: Operating temperature: 0 to 60 °C; Storage: -40 to 85 °C. Humidity: 5 to 90% RH (operating/storage). MTBF: 493,780 hrs @25°C; 290,407 hrs @45°C; 187,006 hrs @60°C (Telcordia Issue 4, GB/GC)
• Mechanics / Dimensions: ATX form factor 305 mm x 244 mm (12.0" x 9.6")
