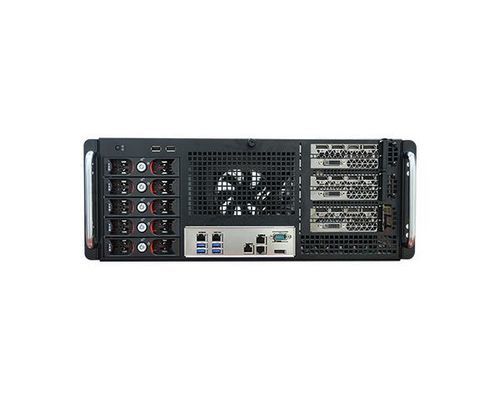

Storage server RM646-ERX810

GPUEDGEAI edge

Overview

The RM646-ERX810 is a 4U rackmount Edge AI server from DFI engineered for high-performance edge computing and AI workloads. It supports dual 4th/5th Generation Intel® Xeon® Scalable processors, multiple PCIe Gen5 GPUs, and provides IPMI-based out-of-band management for remote monitoring and control.

Key specifications

• Processors: Dual 4th/5th Gen Intel® Xeon® Scalable (LGA 4677) — wide range of Gold/Silver SKUs supported.
• Chipset: Intel® C741; BIOS: Insyde.
• Memory: 16 x ECC RDIMM slots, up to 1024 GB DDR5 up to 5600 MHz.
• GPU/Expansion: 3 x PCIe x16 (Gen5) supporting up to three dual-slot GPUs.
• Storage: External 4 x SATA 3.0 (RAID 0/1/5/10); Internal 1 x M.2 2280 M-key.
• Graphics & BMC: BMC AST2600; Display: 1 x DisplayPort.
• Networking: 4 x Intel® I210 GbE; IPMI NIC RTL8211F; Front I/O includes 4 x GbE and 1 x dedicated IPMI LAN.
• I/O & peripherals: 1 x RS-232/422/485 (DB-9), 4 x USB 3.2 Gen1, audio codec ALC888S.
• Management & security: IPMI remote management; TPM 2.0 supported.
• Power & cooling: ATX PS/2 or optional mini redundant PSU; cooling by 2 x 120 mm fans.
• Mechanical: Heavy industrial steel chassis; dimensions W x H x D: 431.8 x 175.6 x 449.8 mm; color: black.
• Operating environment: 0–30°C (up to 250W), 0–40°C (up to 205W); storage -30–60°C with RTC battery, -40–85°C without; humidity 5–90% RH non-condensing.
• Certifications: CE, FCC, RoHS, UKCA; shock and vibration tested (ISTA Project 1A packaging).
• Origin: Taiwan.

System configuration & expansion

The platform accommodates high-density AI accelerators with three Gen5 x16 slots for dual-slot GPUs, multiple NVMe/SATA storage options and up to 1 TB DDR5 ECC memory to support inference and analytics at the edge. BIOS and BMC offer standard server management features for remote deployment.

I/O, monitoring and management

Front-panel interfaces and a dedicated IPMI LAN simplify onsite maintenance and remote monitoring. The BMC AST2600 provides KVM-over-IP and sensor telemetry for 24/7 operation monitoring.

Applications

Designed for edge AI inference, video analytics, industrial automation, telecom edge compute and other applications requiring GPU-accelerated processing close to data sources.

Packing list

• 1 x RM646-ERX810 system unit
