Hydraulic hose 2 SN
synthetic rubbersteelindustrial

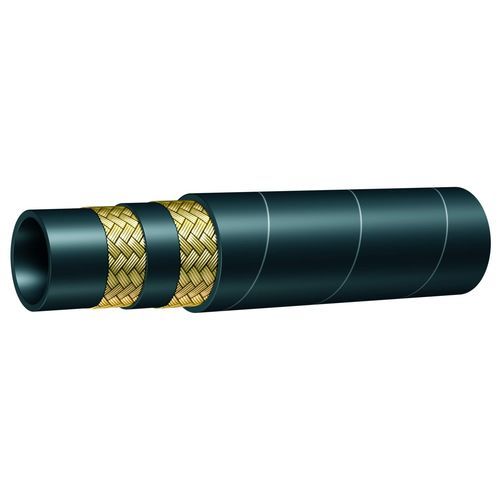

Hydraulic hose - 2 SN - Dietzel - synthetic rubber / steel / industrial
Hydraulic hose - 2 SN - Dietzel - synthetic rubber / steel / industrial
Add to favorites
Compare this product

Characteristics

Use
hydraulic
Material
synthetic rubber, steel
Applications
industrial
Norms
DIN
Other characteristics
oil-resistant, weather-resistant, standard
Inner diameter

Max.: 76.2 mm
(3 in)

Min.: 31.8 mm
(1.252 in)

Outer diameter

Max.: 90.5 mm
(3.563 in)

Min.: 48.3 mm
(1.902 in)

Pressure

Max.: 125 bar
(1,812.972 psi)

Min.: 45 bar
(652.67 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Tube - oil resitsant synthetic rubber Reinforcement - 2 high tensile steel wire netting Cover - synthetic rubber with high abrasion, ozone, weather resistance Standard - DIN EN 853; SAE 100 R2S DN 6 bis DN 25 - Please use our high-quality hose lines of the 2SC variant for these nominal diameters.

Catalogs

2 SN
2 SN
1 Pages
