Hydraulic hose 14A seriessynthetic rubbersmoothweather-resistant
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber
- Other characteristics
- smooth, oil-resistant, weather-resistant
- Inner diameter
Max.: 152 mm
(5.984 in)Min.: 19 mm
(0.748 in)- Outer diameter
Max.: 170 mm
(6.693 in)Min.: 29 mm
(1.142 in)- Pressure
Max.: 21 bar
(304.579 psi)Min.: 10 bar
(145.038 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description

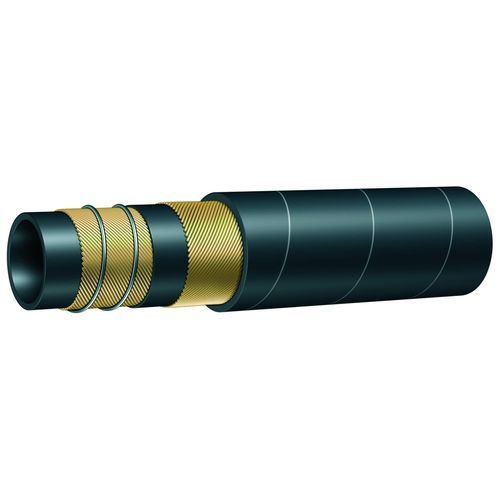

Tube - Black smooth synthetic rubber, conductive, resistant to mineral oils and fuels with max. 50% aromatic content
Reinforcement - High tensile textile plies and helix wire embedded
Cover - Black, smooth rubber, abrasion, oil, fuel, ozone and weather resistant
