Hydraulic hose 4 SH
synthetic rubbersteelhigh-temperature

Hydraulic hose - 4 SH - Dietzel - synthetic rubber / steel / high-temperature
Hydraulic hose - 4 SH - Dietzel - synthetic rubber / steel / high-temperature
Add to favorites
Compare this product

Characteristics

Use
hydraulic
Material
synthetic rubber, steel
Applications
high-temperature
Norms
DIN
Other characteristics
abrasion-resistant, oil-resistant, standard
Inner diameter

Max.: 50.8 mm
(2 in)

Min.: 16.4 mm
(0.646 in)

Outer diameter

Max.: 68 mm
(2.677 in)

Min.: 28.7 mm
(1.13 in)

Pressure

Max.: 450 bar
(6,526.698 psi)

Min.: 250 bar
(3,625.943 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

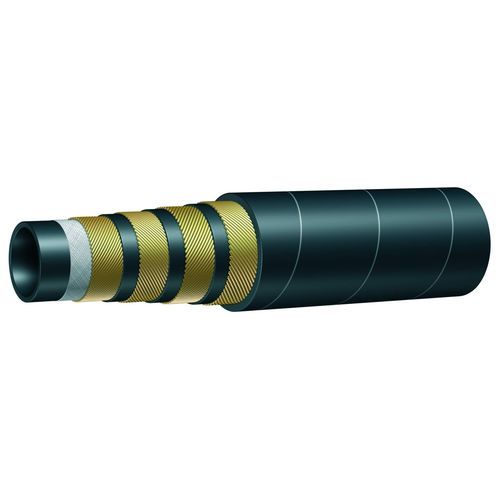

Tube - oil resistant syntetic rubber Reinforcement - 4 high tensile steel spirals Cover - synthetic rubber with high temperature, ozone and abrasion resistance Standard - DIN EN 856 Highly abrasion-resistant cover: - - delivery is possible with highly abrasion-resistant cover - test accoridng to EN ISO 6945 after 1 million cycles: no measurable abrasion your advantage: - - no hose protection necessary - hose can be used for application under oil Do you have need for hose lines with highly abrasion-resistant cover? We are looking forward to your inquiry.
