Hydraulic hose 1 SC
synthetic rubbersteelhigh-temperature

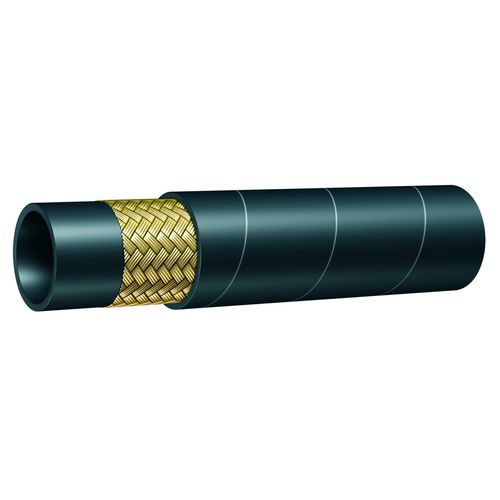

Hydraulic hose - 1 SC - Dietzel - synthetic rubber / steel / high-temperature
Hydraulic hose - 1 SC - Dietzel - synthetic rubber / steel / high-temperature
Add to favorites
Compare this product

Characteristics

Use
hydraulic
Material
synthetic rubber, steel
Applications
high-temperature
Norms
DIN
Other characteristics
abrasion-resistant, oil-resistant, standard
Inner diameter

Max.: 25.4 mm
(1 in)

Min.: 6.4 mm
(0.252 in)

Outer diameter

Max.: 34.9 mm
(1.374 in)

Min.: 13.5 mm
(0.531 in)

Pressure

Max.: 225 bar
(3,263.349 psi)

Min.: 88 bar
(1,276.332 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Tube - oil resitsant synthetic rubber Reinforcement - 1 high tensile steel wire netting Cover - synthetic rubber with high temperature, ozone and abrasion resistance Standard - DIN EN 857

Catalogs

1 SC
1 SC
1 Pages
