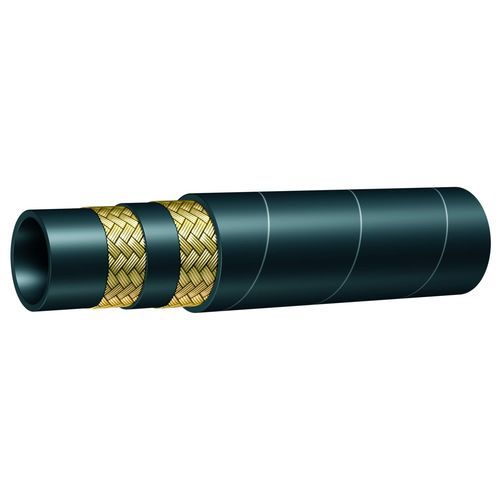

Hydraulic hose 2 SCsynthetic rubbersteelhigh-temperature
Add to favorites
Compare this product
Characteristics
- Use
- hydraulic
- Material
- synthetic rubber, steel
- Applications
- high-temperature
- Norms
- DIN
- Other characteristics
- abrasion-resistant, oil-resistant, standard
- Inner diameter
Min.: 6.4 mm
(0.252 in)Max.: 25.4 mm
(1 in)- Outer diameter
Min.: 14.2 mm
(0.559 in)Max.: 36.6 mm
(1.441 in)- Pressure
Min.: 165 bar
(2,393.123 psi)Max.: 400 bar
(5,801.51 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
Tube - oil resitsant synthetic rubber
Reinforcement - 2 high tensile steel wir netting
Cover - synthectic rubber with high temperature, ozone and abrasion resistance
Standard - DIN EN 857
