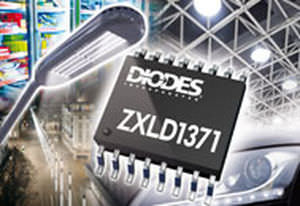

Dimmable LED driver 5 - 60 V | ZXLD1371

The ZXLD1371 is an LED driver controller IC for driving external MOSFETs to drive high current LEDs. It is a multi-topology controller enabling it to efficiently control the current through series connected LEDs. The multi-topology enables it to operate in buck, boost and buck-boost configurations with only one current sense resistor. The ZXLD1371 is similar to the ZXLD1370 with a lower minimum operating voltage of 5.0V, which allows it work from power rails that might be subjected to transients. Its 60V capability coupled with its multi-topology capability enables it to be used in a wide range of applications and drive in excess of 15 LEDs in series. The ZXLD1371 is a modified hysteretic controller using a patent pending control scheme providing high output current accuracy in all three modes of operation. High accuracy dimming is achieved through DC control and high frequency PWM control. The ZXLD1371 uses two pins for fault diagnosis. A flag output highlights a fault, while the multi-level status pin gives further information on the exact fault. Features and Benefits Operates down to 5.0V High accuracy LED control: 1% reference tolerance Multi-topology device LED thermal management via external thermistor Separate 1000:1 PWM dimming capability Switching frequency up to 1MHz
