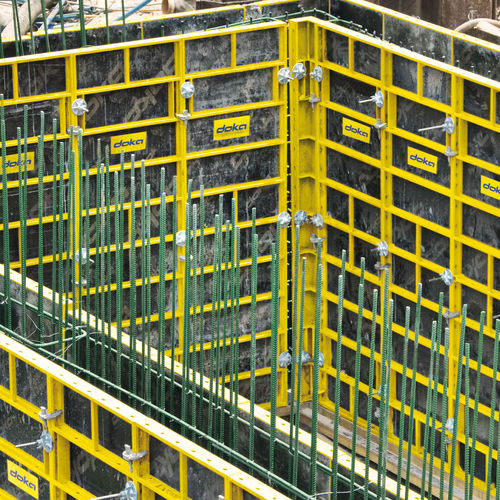

Modular formwork Frami Ecolightweightwallcolumn
Add to favorites
Compare this product
Characteristics
- Type
- modular, lightweight
- Application
- wall, column, slab
- Material
- steel
- Other characteristics
- steel, height-adjustable
- Pressure
60 kN/m²
(8.7 psi)- Length
1 m, 3 m
(3'03" , 9'10" )- Width
75 cm, 90 cm
(30 in, 35 in)
Description
Overview
System
Frami clamp
Continuous height mismatch
Utilization
Services & Support
Technical specifications
- The lightweight Frami eco formwork by Doka features a powder-coated steel frame for fast, economical forming with or without crane handling.
System
- Simple system grid with panel widths from 30 cm to 90 cm in 15 cm increments.
- Standard panel heights: 1.20 m and 3.00 m.
- 75 cm universal panel for outside corners, columns and stop-ends.
- Larger gang-forms available for crane repositioning.
Frami clamp
- A single hammer blow on the Frami clamp pulls panels together to form a flush, tensile-resistant joint without extra stiffening.
- Ensures correct alignment and joint resistance to tensile forces.
Continuous height mismatch
- Continuous hardware slot in the frame allows fixing the Frami clamp at any height.
- Offers continuous height offset without predefined increments for easy adaptation to steps, slopes and uneven ground.
Utilization
- Suitable for use across full room heights.
- Only three form ties required per 300 cm panel height.
- Permitted fresh-concrete pressure: 60 kN/m².
- Cost-effective forming of stop-ends, outer corners and columns via special hole pattern in the 75 cm universal panel.
Services & Support
- Doka training, static calculation and project management.
- Equipment service, transport, assembly and dismantling.
- BIM support, rental service and myDoka customer portal.
Technical specifications
- Product type: modular formwork system and related services.
- Panel widths: 30–90 cm; heights: 1,20 m, 3,00 m.
- Fresh-concrete pressure: 60 kN/m².
- Documents and videos available on product pages.
