Plywood formwork panel Top 100 tec

Overview

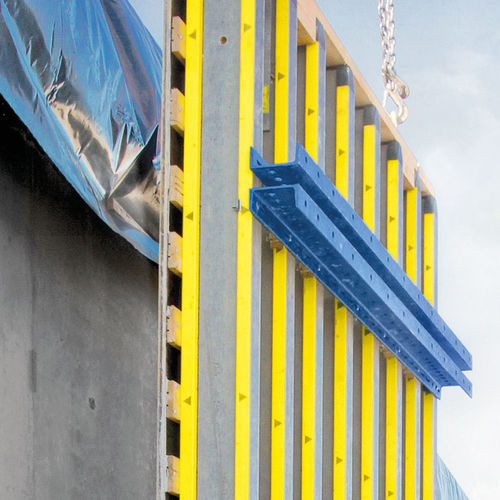

The Large-area formwork Top 100 tec, based on the heavy-duty I tec 20 beam, is designed to deliver absolute dimensional accuracy under high fresh-concrete pressures and with wide form-tie spacing. Element shape, dimensions, tie-hole pattern and form-facing can be adapted to project requirements.

Lower labour costs
Optimised waling planes reduce installation work and connector requirements

• Large form-tie pattern while maintaining the same permitted fresh-concrete pressure
• Up to 30% fewer form-tie points, lowering installation costs
• Up to 30% fewer connectors, reducing manhours

Fast pouring
High permitted fresh-concrete pressure enables fast pours and accommodates modern concrete types

• Can be dimensioned for easy-workability and self-compacting concretes
• Heavy-duty I tec 20 beam
• Top100 tec waling WU14
• Tie-rod system 20.0

Reduces civil engineering costs
High equipment utilisation and simplified erection reduce material and time expenditures

• Reduced material usage and simpler on-site assembly
• Parallel girderframe units can be spaced wider on bridges
• Optimised hole-grid offers freedom when installing form-ties and accessories (e.g. spindle struts)
• Continuous adaptability to the required form-tie pattern

Architectural requirements achievable economically
Large tie patterns and flexible choice of form-facing allow high-quality visible concrete finishes

• Stiffer elements improve surface planeness for superior finishes
• Form-facing is screwed on from the rear to avoid screw-head imprints
• Optimised element connectors reduce bleeding

Comprehensive workplace safety
Compatibility with access and platform systems for safe handling and operations

• Safe vertical access with the Ladder system XS
• Perimeter workplace safety with the Platform system Xsafe plus
• Practical accessories (panel struts, lifting/repositioning devices) enable safe, easy handling

Suitable products

• 3-ply sheets (Doka System Components)
• Seals / sealings for fair-faced concrete (Doka System Components)
• Platform system Xsafe plus (Doka Safety Systems)

Technical specifications

• System name / model: Top 100 tec
• Based on: Beam I tec 20 (heavy-duty beam)
• Typical waling: Top100 tec waling WU14
• Tie system: Tie-rod system 20.0
• Designed for: high permitted fresh-concrete pressure; suitable for self-compacting and easy-workability concretes
• Form-tie pattern: large pattern allowing up to approx. 30% fewer tie points and up to 30% fewer connectors compared with conventional layouts
• Surface finish advantages: stiffer elements for improved planeness; rear-fixed form-facing to avoid screw-head imprints; optimised connectors to reduce bleeding
• Safety/accessories compatibility: Ladder system XS and Platform system Xsafe plus; panel struts and lifting/repositioning devices supported
