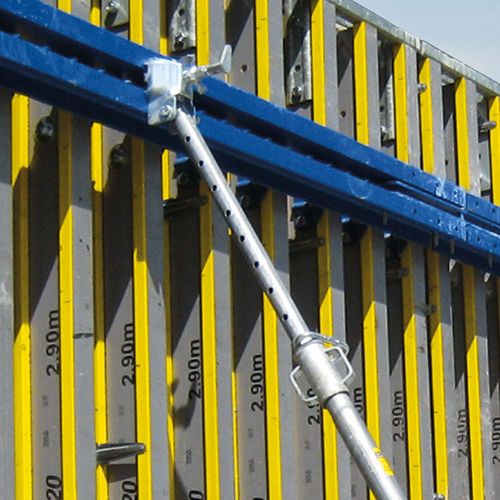

Wall formwork panel FF100 tec

plywood

Overview
The pre-assembled standard elements of the FF100 tec wall formwork combine timber-beam formwork benefits with the grid advantages of a framed system. High load capacity and a 25 cm element grid allow economical realisation of architectural fair-faced concrete specifications. FF100 tec is suitable for fair-faced concrete categories SB1–SB4 (DBV guidance).

High pouring rates
Achieve efficient pours with robust system components:

• Pouring height up to 3.60 m with only two 20.0 form-ties
• Approx. 80% higher load capacity of the I-tec 20 composite formwork beam versus conventional H20 beams
• Stiff FF100 tec walings WU14 with welded-on plates for secure connections

Maximised equipment utilisation
Reduce on-site stock and speed planning and assembly:

• 25 cm grid and a small number of element widths simplify planning
• Site-ready pre-assembled elements available with or without form-facing
• Improved element connectors with optimized pull-tight and push-apart function

Fair-faced concrete formwork
Designed for consistent architectural concrete finishes:

• Form-facing is screwed on from the rear to avoid screw impressions on the concrete face
• Form-ties positioned well inside the element in a symmetrical pattern
• Pre-assembled beam grilles allow use of various form-facing types
• Integral corner reinforcement angle ensures reliable sealing at outside corners

Comprehensive workplace safety
Compatible access and working platform solutions for safe operation:

• Vertical access with Ladder system XS
• All-round workplace protection with Platform system Xsafe plus or pouring platforms
• Practical accessories for safe handling (panel struts, lifting/repositioning devices, etc.)

Suitable products

• 3-ply form-facing sheets (system components)
• Sealings for fair-faced concrete (system components)
• Platform system Xsafe plus (safety system)

Technical characteristics / specifications

• Product type: high-load timber-beam wall formwork with system grid
• Model: FF100 tec (pre-assembled standard elements)
• Suitable for fair-faced concrete categories: SB1–SB4 (DBV)
• Maximum pour height (reference): up to 3.60 m (only two 20.0 form-ties required)
• Beam: I-tec 20 composite formwork beam — approx. 80% higher load capacity vs. H20
• Walings: FF100 tec WU14 with welded-on plates
• Grid / element widths: 25 cm grid, limited widths for simple planning
• Form-facing: rear-screwed; pre-assembled beam grilles permit various facing types
• Connectors: optimized pull-tight and push-apart function
• Corner sealing: integral corner reinforcement angle
• Access & safety: compatible with Ladder system XS and Platform system Xsafe plus
