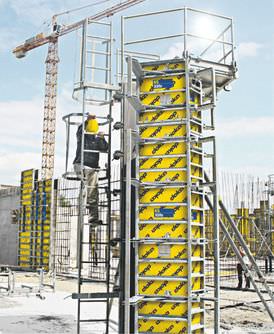

Formwork panel KS Xlife

Overview
For cost-effective, scheduled forming of large numbers of square and rectangular columns with variable cross-sections. The KS Xlife column formwork features a folding mechanism for fast opening and closing and Framax Xlife facing for high reuse.

Rapid forming

• Folding mechanism: units fold open and shut to minimise erection and striking times.
• Wide adjustment range: adjustable column cross-sections from 20 to 60 cm in 5 cm grid without system change.
• Fair-faced concrete quality: form-facings are screwed from the rear to avoid tie-point or frame imprints.

Xlife facing — reduced close-out costs

• Plastic-enhanced Framax Xlife surface allows very high reuse cycles.
• Improved surface cleaning, including with high-pressure washer, reduces repair work.
• Special sheet structure permits nailing at low temperatures without splintering.

Save crane time

• Complete column formwork units can be repositioned with a single crane cycle without disassembly.
• With shifting wheels attached, units up to 3.60 m can be repositioned horizontally on the same level without a crane.

Workplace safety

• Safe vertical access with Ladder system XS.
• All-round safe working position with column-formwork platforms.
• Practical handling accessories (panel props, lifting/repositioning devices, etc.) facilitate safe operation.

System — plumbing and clean corners

• Positioning aid enables fast plumbing and alignment using a nail-puller.
• Frontal triangular ledge ensures tight, clean corners.

Compatible products and accessories

• Ladder system XS and column-formwork platforms.
• Shifting wheels for horizontal repositioning and lifting/repositioning devices.

Technical specifications

• Model: KS Xlife
• Column cross-section range: 20 cm to 60 cm (5 cm grid)
• Maximum formwork height for craneless horizontal repositioning: 3.60 m
• Folding mechanism for rapid opening and closing
• Form-facing: Framax Xlife sheet with plastic-enhanced surface; fixed from rear for imprint-free finish
• Compatibility: Ladder system XS, column-formwork platforms, shifting wheels and handling accessories
