Wall formwork panel

Overview

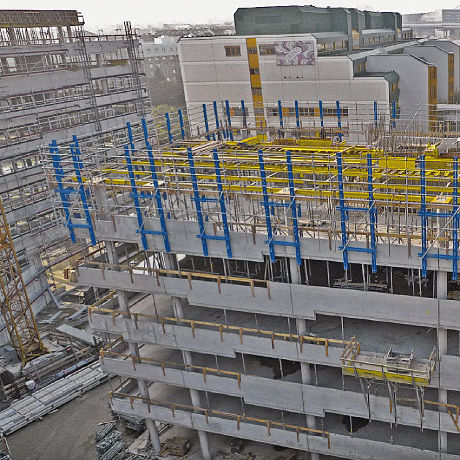

Facade formwork Top 50 accelerates execution of pre-cast façade works for projects with integrated or set-back cast-in-place (CIP) columns. The system uses pre-cast members as stop-ends and offers integrated fall-arrest barrier options for safe and efficient on-site forming.

Key benefits

• Fast construction progress:
  • integrates column formwork for CIP columns to speed up sequence of works
  • uses pre-cast elements as stop-ends to reduce on-site operations and costs
  • allows slab-edge to be cast in advance to shorten programme times
  • ready for rapid on-site deployment after professional pre-assembly
• Safe workflows:
  • forming and stripping primarily performed from the safety of the floor slab
  • integral fall-arrest protection via scaffold-tube assembly covering the full opening, effective even with low pre-cast members
• Cost savings:
  • separation of façade and slab tasks reduces labour and material requirements
  • integrated fall-arrest barrier reduces the need for separate work and protection platforms

System
Top 50 eliminates the need to construct stop-ends at the slab edge by utilising pre-cast members as the stop-end. The system design allows integration of scaffold-tube based fall-arrest barriers and removes the need for working-platform railings in many applications, delivering substantial time and cost savings.

Application
Top 50 is suitable for projects using pre-cast façade elements where safe forming from the floor slab and integrated fall-arrest barriers are required. It is applicable both for integrated and set-back CIP columns and supports faster, safer, and more economical façade erection sequences.

Suitable products

• Seals for fair-faced concrete (Doka system components)

References

• Tornimäe 3 (Swissotel Tallinn)
• Pylon for bridge on Western Express Highway Mumbai
• The Metropolis
• Link-road from A12 to Alto da Guerra

Documents (available)

• User Information booklet (EN) – Façade formwork Top 50
• Article list (EN)

Technical specifications

• Brand: Doka
• Model / commercial denomination: Top 50
• Product type: Facade formwork for pre-cast façades
• Application: Pre-cast façades; suitable for integrated and set-back CIP columns
• Key features: uses pre-cast members as stop-ends; integral fall-arrest barrier via scaffold-tube assembly; eliminates need for stop-ends and working-platform railings; enables slab-edge to be cast in advance; ready for professional pre-assembly
• Suitable components: Doka system components such as seals for fair-faced concrete
• Available documentation: User Information booklet (EN); Article list (EN)
