Wall formwork panel Framax Xlife

Product

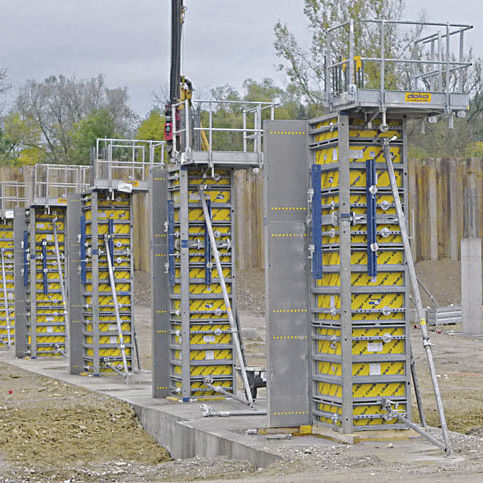

The Framax Xlife system universal panels for cast-in-place rectangular and square columns. Designed to form varied column cross-sections on a 5 cm grid without requiring a dedicated column formwork set on site.

Versatile usage

• Permits column cross-sections up to 105 cm x 105 cm with 5 cm incremental adjustment
• Universal panels serve for columns, corners, stop-ends and wall junctions
• Practical accessories enable quick assembly, shifting and resetting

Reduced quantities and cost efficiency

• Maximises site utilisation by using the same panels for multiple applications
• Long service life due to Framax Xlife facing sheet and hot-dip galvanised frames
• Universal panels can be adapted for normal wall formwork by closing the facing holes

Comprehensive workplace safety

• Safe vertical access with the Ladder system XS
• All-round safe working positions with column-formwork platforms
• Safe handling using panel struts, lifting and repositioning devices

Panel sizes
Available panel widths: 90 cm and 120 cm. Available panel heights: 90 cm, 135 cm, 270 cm and 330 cm.

Specifications / technical data

• Model: Framax Xlife
• Application: Forming rectangular and square cast-in-place (CIP) columns
• Adjustment grid: 5 cm
• Maximum column cross-section: up to 105 cm x 105 cm
• Panel widths: 90 cm, 120 cm
• Panel heights: 90 cm, 135 cm, 270 cm, 330 cm
• Material / durability: Framax Xlife facing sheet; hot-dip galvanised frames
• Accessories: panel struts, lifting/repositioning devices, fast clamps, compatible ladderways and working platforms (Ladder system XS)
• Other: Universal panels usable also as wall panels after closing facing holes
