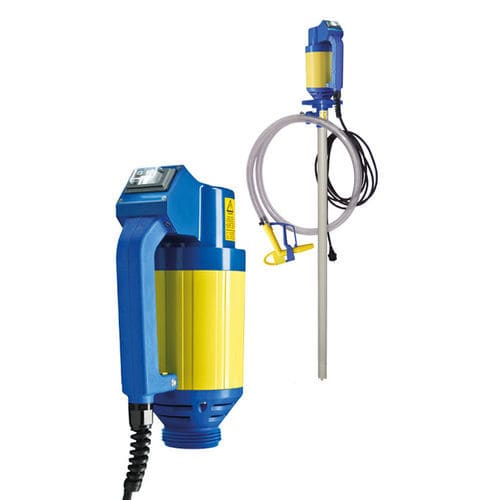

Chemical pump JP-380

airwith electric motorsubmersible

The drive JP-380 is a compactly built, not explosion-proof, externally ventilated universal motor. This handy, very robust and powerful motor can be used to drive the suction tubes of drum pumps. In this combination it is suitable for many thin liquid and slightly viscous, neutral, aggressive and non-flammable liquids (max. 1,000 mPas). Its sophisticated, technically clear structure ensures an efficient and safe use when transferring a wide range of media. The drum pump motor is characterized not only by its light weight (6 kg) but also by its elegant design and ease of use. The non-stationary and stationary usable drive is particularly suitable for intermittent operation. As externally ventilated motor it has an optimal air cooling, low noise and ensures high operational safety and long lifetime. The coated motor housing made of aluminium ensures a high chemical resistance when aggressive vapours of acids and alkalies are present. The standard integrated low voltage release is intended to prevent an uncontrolled start of the drum pump motor after a power failure or voltage drop and thus guarantees maximum safety. The flow rate of the media to be pumped can be regulated by an optionally available speed control that is integrated in the motor handle. Therefore the flow rate can be adjusted to the needs of the user. The maximum density of the media is for the JP-380 universal motor 1.9, the maximum viscosity 1,000 mPas.
