Drum pump JP-480 SS
for chemicalswith electric motorsubmersible

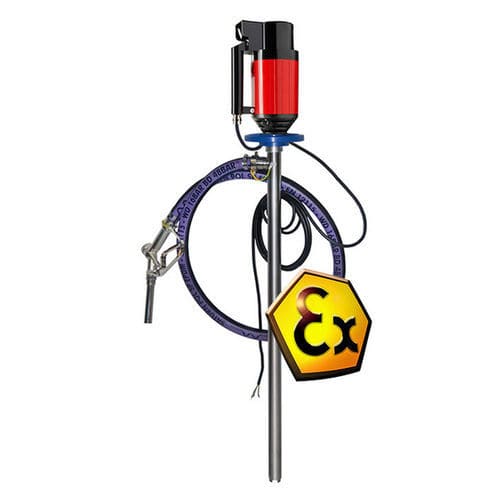

Drum pump - JP-480 SS - Dr. Jessberger GmbH - for chemicals / with electric motor / submersible
Drum pump - JP-480 SS - Dr. Jessberger GmbH - for chemicals / with electric motor / submersible
Add to favorites
Compare this product

Characteristics

Fluid
for chemicals
Operation
with electric motor
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
cooling, for control, drum
Material
stainless steel
Fluid specification
for flammable fluids
Voltage
380 V
Protection level
ATEX, IECEx
Other characteristics
integrated
Flow

112 l/min
(29.58727 us gal/min)

Head

16 m
(52'05" )

Power

825 W
(1.12 hp)

Description

JP-480 SS Motor Ex-protection, 50/60 Hz, protection class II 2G Ex db IIC T6 Gb, IP 55, overload protection with integrated low voltage release, 5 m cable without plug. Optional with Ex-plug. EC type examination certificate Bureau Veritas EPS 17 ATEX 1 088 X IECEx Certificate of Conformity IECEx EPS 17.0045X Pump tube: Stainless steel 316Ti, outer-Ø 41 mm Connection thread G 1¼” Hose connection 1″ Certificate number ZELM 09 ATEX 0424 X 2 m Multi purpose hose 1″ (DN 25) 2 Hose connectors stainless steel, IG 1¼” or IG 1″ 1 Nozzle Brass nickel plated 1 Bonding ground set
