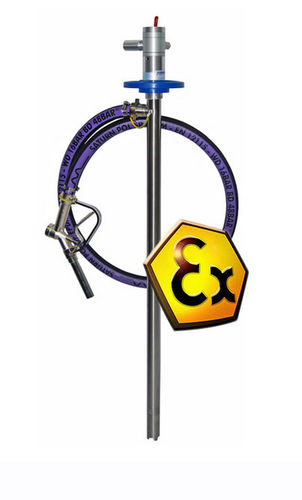

Drum pump JP-AIR 1
for chemicalsairpneumatically-actuated

Drum pump - JP-AIR 1 - Dr. Jessberger GmbH - for chemicals / air / pneumatically-actuated
Drum pump - JP-AIR 1 - Dr. Jessberger GmbH - for chemicals / air / pneumatically-actuated
Add to favorites
Compare this product

Characteristics

Fluid
for chemicals, air
Operation
pneumatically-actuated
Mobility
stationary
Domain
industrial
Applications
cooling, for control, drum
Material
stainless steel
Fluid specification
for flammable fluids
Protection level
ATEX
Other characteristics
ball valve
Flow

78 l/min
(20.60542 us gal/min)

Pressure

6 bar
(87.023 psi)

Head

9 m
(29'06" )

Power

300 W
(0.41 hp)

Fluid temperature

80 °C
(176 °F)

Description

Air operated motor JP-AIR 1. Motor with brass ball valve and muffler for compressed air control. This regulates the motor speed and varies the pumping capacity, Ex II 2 GD c IIC X. Certificate number IBEx U05 ATEX B007 X Pump tube: Stainless steel 316 Ti, outer-Ø 41 mm, connection thread G 1¼” Certificate number ZELM 09 ATEX 0424 X 2 m Multi purpose hose 1″ (DN 25) 2 Hose connectors stainless steel, IG 1¼” or IG 1″ 1 Nozzle Brass nickel plated 1 Bonding ground set
