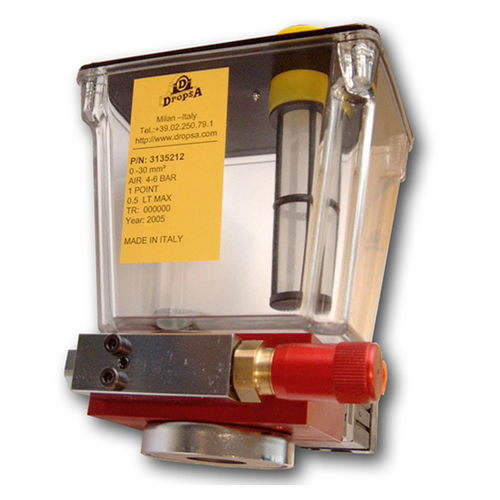

Air/oil lubrication unit Grip

minimal quantityfor machine toolsfor presses

Grip combines the advantages of air/oil lubrication for tools with dry machining components with the ability to apply the pump quickly to machine tools without the need for drilling. With timer or manual, but always with the magnet. In both versions the magnet, placed on the base or back side of the pump, guarantees a solid grip during the lubrication cycle and the option of moving the Grip to another machine. In addition to the magnet, the possibility of excluding the airflow for oil-only applications allows a single pump to be used for airless lubrication requirements. Grip is the ideal solution for small machines, optimisation workshop lubrication processes, flexible regulation of the amount of oil at each point (0 to 30 mm3 per cycle), and it increases tool life. Key features: - Reservoir Capacity: 0.5 Litre - Air supply pressure: 4 ÷ 6 bar (58.8 ÷ 88.2 psi) - Operating temperature: -5°C ÷ +55 °C (23°F ÷ 131°F) - Delivery: 0 to 30 mm3 - Humidity: 90% max - Lubricants: LRT oils - Dropsa
