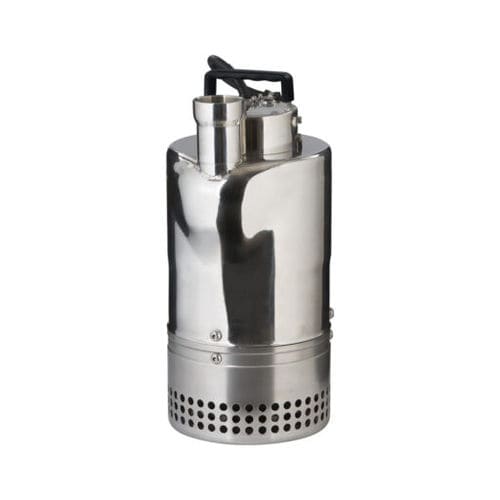

Water pump DEMINY seriesoilelectricsubmersible
Add to favorites
Compare this product
Characteristics
- Fluid
- water, oil
- Operation
- electric
- Priming
- submersible
- Technology
- centrifugal
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- handling, cooling, drainage, lubrication, drainage
- Material
- stainless steel
- Voltage
- 400 V, 230 V
- Protection level
- IP68
- Other characteristics
- mechanical, small, double, seal
- Flow
Max.: 0.03333 m³/s
(4,237.76001 ft³/s)0.03333 m³/s
(4,237.76001 ft³/s)Min.: 0 m³/s
(0 ft³/s)- Head
Max.: 42.5 m
(139'05" )Min.: 2 m
(6'06" )- Power
Max.: 12.5 kW
(17 hp)Min.: 1.1 kW
(1.5 hp)- Fluid temperature
Max.: 35 °C
(95 °F)Min.: 0 °C
(32 °F)- Width
204 mm, 230 mm, 293 mm
(8.03 in, 9.06 in, 11.54 in)- Height
387 mm
(15.24 in)- Weight
Max.: 105.5 kg
(232.59 lb)Min.: 21 kg
(46.3 lb)
Description
Submersible pump, with oil bath motor, for cooling and lubrication of the bearings and a double mechanical seal, oil bath (motor side) and water bath (pump side). Suitable for construction site drainage applications.
Submersible pump, with oil bath motor, for cooling and lubrication of the bearings and a double mechanical seal, oil bath (motor side) and water bath (pump side).
The sturdy structure of the DEMINY electric pump makes it extremely versatile.
For further technical information see the Databook
• Drainage of construction sites and small tunnels
• Handling of moderately foul water containing abrasive materials, rainwater and groundwater
