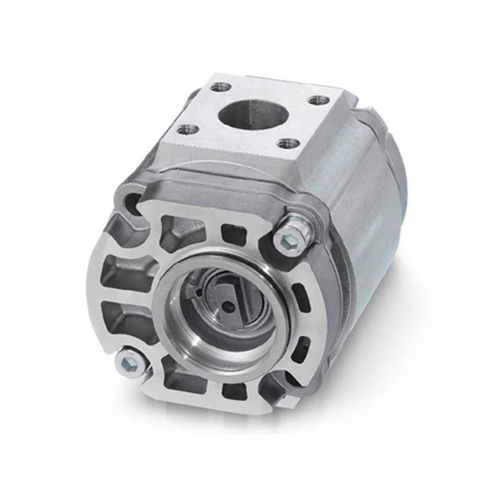

Internal-gear hydraulic pump EIPS2
for vehicleshigh-efficiencylow-noise

internal-gear hydraulic pump
internal-gear hydraulic pump
Add to favorites
Compare this product


Characteristics

Type
internal-gear
Applications
for vehicles
Other characteristics
high-efficiency, low-noise
Pressure

Min.: 250 bar
(3,626 psi)

Max.: 320 bar
(4,641 psi)

Speed

Min.: 200 rpm
(1,257 rad.min-1)

Max.: 4,000 rpm
(25,133 rad.min-1)

Fluid temperature

Min.: -40 °C
(-40 °F)

Max.: 120 °C
(248 °F)

Description

Application Pumps for mobile applications Electric-powered forklifts Diesel-powered forklifts Gas-powered forklifts Description EIPS – the logical development of an innovation The EIPS series was developed specially for the rigorous demands of mobile hydraulics. The pumps in this series are the result of our decades of experience in the development of internal gear systems. They feature especially low-noise operation, excellent levels of efficiency and long service lives. Technical data Pump volume (l/min) at 1,500 rpm (range) - 7,5 - 37,5 Nominal size (range) - 5 - 25 Vth - specific volume (cm³/rev) (range) - 5,4-25,2 Max. speed (rpm) (range) - 4.000 Permanent operating pressure (bar) (range) - 250 Peak operating pressure (bar) (range) - 320 Wave end - tang shaft, geared, cylindrical
