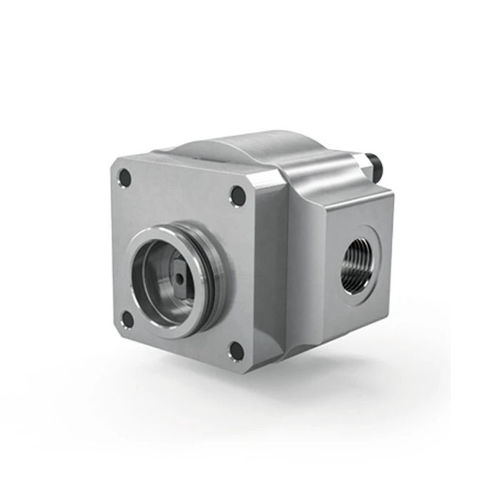

Internal-gear hydraulic pump EIPS1-025RD01-10
for vehiclescompacthigh-efficiency

internal-gear hydraulic pump
internal-gear hydraulic pump
Add to favorites
Compare this product


Characteristics

Type
internal-gear
Applications
for vehicles
Other characteristics
compact, high-efficiency, low-noise, variable-speed, for low flow rates
Pressure

Max.: 320 bar
(4,641 psi)

Min.: 300 bar
(4,351 psi)

Speed

Max.: 4,000 rpm
(25,133 rad.min-1)

Min.: 400 rpm
(2,513 rad.min-1)

Fluid temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Description

Item number: 6000100008 Application NEW DEVElOPMENT Pumps for mobile applications Electric-powered forklifts Diesel-powered forklifts Gas-powered forklifts 2Q-operation pump/hydro motor Decentralized high-efficiency low-voltage-hydraulic units Description EIPS – the logical development of an innovation The EIPS series was developed specially for the rigorous demands of mobile hydraulics. The pumps in this series are the result of our decades of experience in the development of internal gear systems. Now, the new EIPS1 is available who is ideally suited for small flow rates for variable speed applications with very high efficiency. They feature especially low-noise operation, excellent levels of efficiency, compact design, continious operating pressure up to 320 bar and long service lives. Technical data Pump volume (l/min) at 1,500 rpm - 3.75 Nominal size - 25 Vth - specific volume (cm³/rev) - 2.5 Max. speed (rpm) - 4000 Permanent operating pressure (bar) - 300 Peak operating pressure (bar) (range) - 320 Wave end - tang shaft
