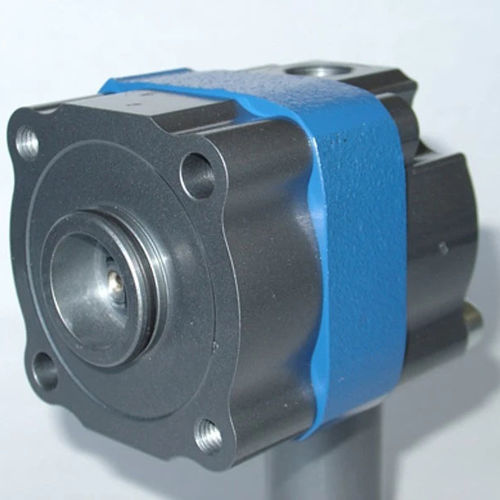

Internal-gear hydraulic pump EIPR series

for vehicleshigh-efficiencylow-noise

Application Pumps for mobile applications Electric-powered forklifts Automotive applications Door openers Brake ventilators Description EIPR – the logical development of an innovation

 The EIPR is a further development of a radially gap-compensated pump that uses no segments. This series was developed especially for mass production in automotive applications. The pumps in this series are the result of our decades of experience in the development of internal gear systems. They feature especially low-noise operation, excellent levels of efficiency and long service lives. Technical data Pump volume (l/min) at 1,500 rpm (range) - 2,25 - 6 Nominal size (range) - 0,15-4 Vth - specific volume (cm³/rev) (range) - 1,5-4,0 - further sizes are available on request Max. speed (rpm) (range) - 4.500 Permanent operating pressure (bar) (range) - 180-200 Peak operating pressure (bar) (range) - 250 Wave end - two dimensional, cylindrical
