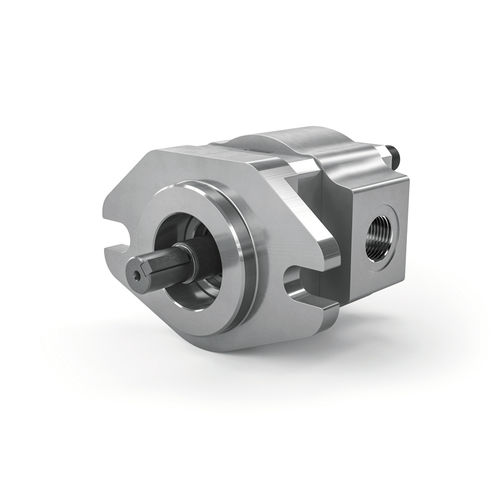

Internal-gear hydraulic pump EIPS1-032RA01-10
for industrial applicationshigh-pressurehigh-efficiency

internal-gear hydraulic pump
internal-gear hydraulic pump
Add to favorites
Compare this product


Characteristics

Type
internal-gear
Applications
for industrial applications
Other characteristics
high-pressure, high-efficiency, low-noise, with speed controller
Pressure

Min.: 300 bar
(4,351 psi)

Max.: 320 bar
(4,641 psi)

Speed

4,000 rpm
(25,133 rad.min-1)

Description

Application Press technology, general Machine tool industry, Hydraulic tensioning device, Paper industry, Conveyor and lifting technology, Plastic and rubber injection technology, Energy-efficient speed-controllable servo drives, decentralized high-efficiency low-coltage hydraulic units Description The new EIPS1 series was especially developed for use in industry and its high efficiency requirements which is a special feature of small displacement sizes. The pumps in this series are the result of our decades of experience in the development of internal gear systems. They feature especially low-noise operation, excellent levels of efficiency and long service lives at high pressures. Technical data Pump volume (l/min) at 1,500 rpm - 4.8 Nominal size - 32 Vth - specific volume (cm³/rev) - 3.2 Max. speed (rpm) - 4000 Permanent operating pressure (bar) - 300 Peak operating pressure (bar) (range) - 320 Wave end - cylindrical
