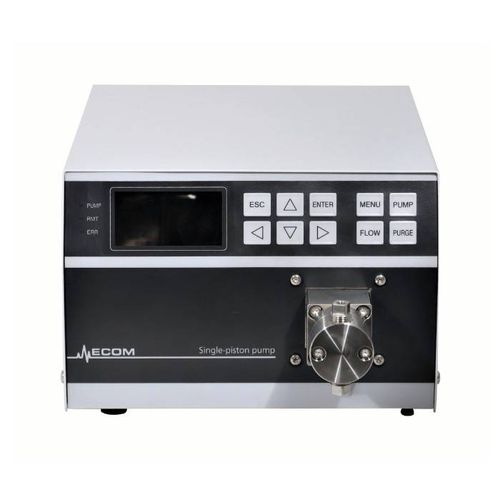

Analytical pump ECP2011

pistonwaterelectric

A single piston pump with a flow rate of 0.001‑10.00 ml/min and a limit of maximum working pressure at 40 MPa is suited for column washing and column regeneration process in liquid chromatography. It is designed with a piston diameter of 1/8”. Also available in configurations made of certified bio-inert materials. This pump may be used in classical analytical applications where pulsation does not matter. Pulsation can be eliminated by pulse dampers. A completely new concept of electronic control and drive of the pump allows using it as a standalone unit, as well as in PC-controlled systems. OLED display allows one to watch (also from a distance) actual pressure or flow rate settings. When working with buffered solvents, it is possible to use piston backwashing. Intuitive operation using a simple keypad allows an easy selection of functions for both pump versions: •flow rate •maximal flow rate - PURGE (for priming and washing) •display brightness •LAN, RS232, USB communication For ECP2011P only: • high-pressure limit •settings pressure sensor zero •pressure unit change (MPa, PSI, bar)
