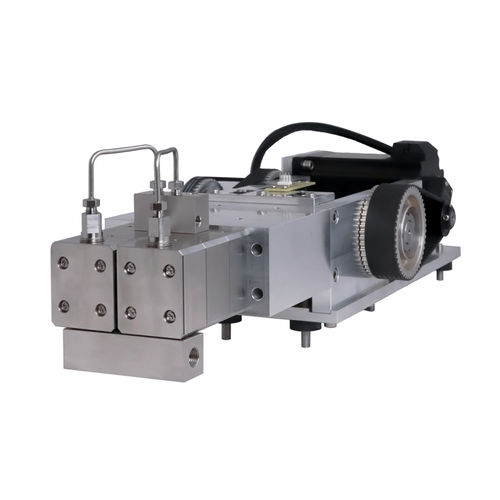

Preparative pump ECP201Lpistonwaterfor chemicals
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- water, for chemicals, for food products
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for the food and beverage industry, for pharmaceutical applications, laboratory
- Applications
- for HPLC, for liquid chromatography
- Material
- stainless steel, ceramic
- Voltage
- 48 V
- Other characteristics
- OEM, flow, built-in, preparative
- Flow
Min.: 0.0001 l/min
(0.00003 us gal/min)Max.: 1 l/min
(0.26417 us gal/min)- Pressure
15 MPa
- Width
208 mm
(8.19 in)- Height
108 mm
(4.25 in)- Weight
18 kg
(39.68 lb)
Description
Preparative pump with a very high output pressure of 15 MPa at a flow rate of up to 1000 ml/min. It has two pistons connected in parallel, with a diameter of 20 mm. It is suited for preparative liquid chromatography where high pressure is needed, etc. The advantage of this pump is a very stable run even at low flow rates. Also available in configurations made of certified bio-inert materials.
This pump is designed as an OEM / built-in unit.
When working with buffered solvents, it is possible to use pistons backwashing.
The pump is supported by the software ECOMAC and Clarity.
