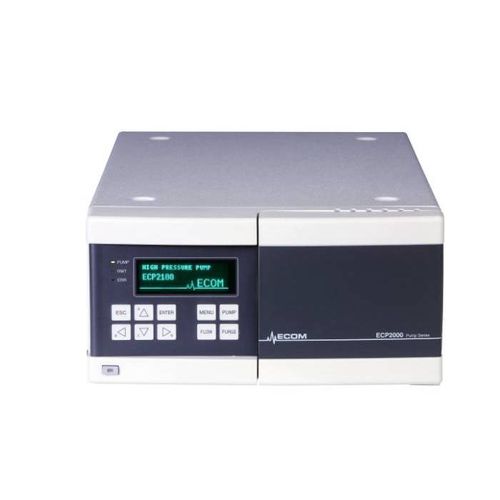

Preparative pump ECP2100

pistonwaterfor chemicals

Innovated pumps ECP2100 work as isocratic pumps and together with a gradient box also as a gradient pump. These powerful and durable pumps are suitable for preparative applications in low- and high-pressure liquid chromatography across the chemical industry. They are designed with 2 pump heads connected in parallel with a piston diameter of 3/8”. Many improvements make these pumps more reliable, including a new learning algorithm for pulsation suppression and a leakage sensor. New material versions have been added-in, beyond to stainless steel A316L, also Hastelloy, titanium and PEEK for biocompatible applications.The pumps can operate in two modes, i.e. using constant pressure or using the newly added option of constant flow rate. The ECP2100 pump now has an innovated spring-loaded outlet check-valve. Gradient function: These pumps work as isocratic pumps, and, together with ECOM gradient boxes, they also work as gradient pumps. Gradient boxes ECB2007, ECB2007PC are equipped with a four-way gradient mixing valve and must be ordered together with the pump. These sophisticated units allow for achieving a precise low-pressure gradient, i.e. gradual changes of solvent composition by mixing up to four liquids at the pump‘s entry. The gradient profile can be defined via a computer or manually using a display and a keypad. Without the use of a gradient box, the pump works as isocratic, with the option of one solvent and the composition of the mobile phase being chosen by the user. Customers can use the pistons‘ back-washing function, after working, for example, with a buffered mobile phase.
