Piston pump

waterfor chemicalswith electric motor

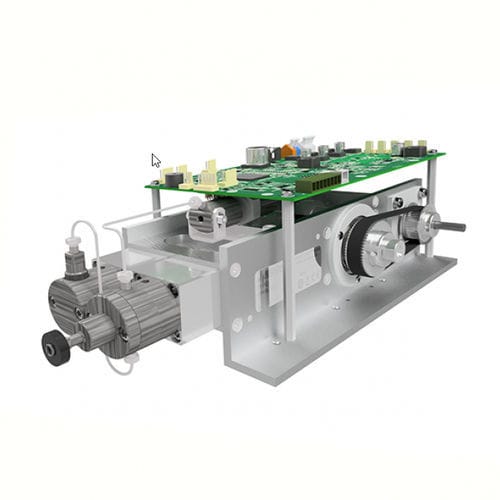

The ECP2010 OEM pump has a flow rate ranging from 0.001 to 10 ml/min. The maximum operating pressure is 40 MPa (5,800 PSI). ECP2010 OEM pump has a flow-rate range from 0.001 to 10 ml/min. The maximum operating pressure is 40 MPa (5800 PSI). It has two pistons connected in series, with a diameter of 1/8”. It is suited to preparative and flash applications in liquid chromatography, as well as solvent pressurising for sample extraction, etc. It also provides a very stable run, even at low flow rates. It is also available in configurations made of certified bio-inert materials. This pump is designed as an OEM / built-in unit. It is possible to use this pump in high-pressure gradient mode, in which two, three, or four units are controlled from a PC via RS232. The control board is mounted on the unit's back side; therefore, the installation is very easy. Only connect the power voltage and RS232, and the pump is ready to work. When working with buffered solvents, it is possible to backwash the pistons. Pump is supported with software ECOMAC and Clarity. ECP2010 OEM PUMP is equipped with a pressure sensor.
