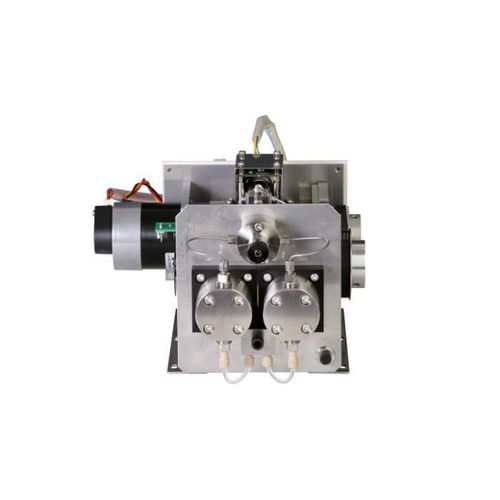

Preparative pump IOTA series

pistonwaterfor chemicals

Iota 100 has a flow-rate range of 0.1 – 100 ml/min. The maximum operating pressure is 15 MPa (2176 PSI). It has two pistons connected in parallel, with a diameter of 3/8”. It is suited for preparative and flash applications in liquid chromatography, but also for solvent pressurizing by sample extractions, etc. Beneficiary is also a very stable run even at low flow rates. This pump is designed as an OEM / built-in unit. There is a possibility of using this pump even in high-pressure gradient mode, where two, three, or four units can be controlled from a PC using RS232. The control board is mounted at the unit's back side therefore the installation is easy. Only connect the power voltage and RS232 and the pump is ready to work. When working with buffered solvents, it is possible to use pistons backwashing. The pump is supported by the software ECOMAC and Clarity. IOTA PUMPS are equipped with pressure sensors.
