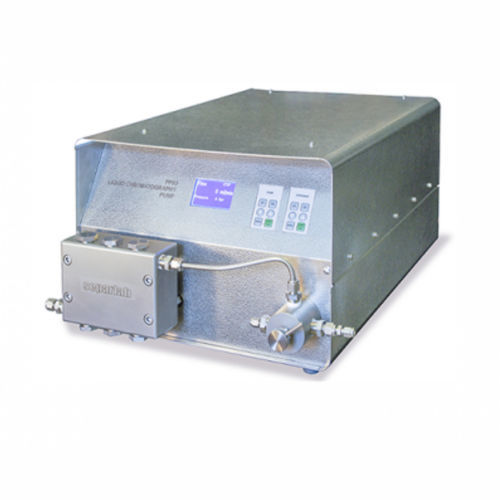

Piston pump Separtrix PP03 series

waterfor chemicalsfor food products

Separtrix PP03 are pulse-less triplex piston pumps designed for preparative chromatography applications - nevertheless, they can be used everywhere, where high pressure, precise flow without pulsations, and high resistance against corrosion are needed. Pumps are equipped with unique compact three-piston head for smooth flow and easy maintenance without a risk of leakage on connecting parts. Back flushed pistons are covered by a hard and chemically resistant polycrystalic carbon layer. Piston cylinders have low dead volume and samples injected through the pump appear low spreading. Pumps with different flow rate ranges differ only in head type, piston diameters, and tubing diameters. Separtrix PP03 are usually supplied with an asynchronous motor and frequency converter but are also available with a step motor which allows the use of the pump in an extremely broad range of flow rates - both for analytical and preparative applications. Special configurations of Separtrix PP03 pumps are used for three phases low pressure gradient – in this case is extremely important that these pumps offer a nearly constant flow rate not only on the output but on the input too. Low-pressure gradient units are delivered with three solenoid valves on the plate which can be connected to the pump side. The power supply for valves is installed inside the pump box. 10 linear steps can be programmed. Separtrix PP03 pumps are delivered in configuration for high-pressure binary gradient as well. Two pumps – master and slave types – are working together. The master pump controls the flow rate and gradient composition (10 linear steps), slave pump is delivered without a control display,
