Preparative pump THETA100

pistonwaterelectric

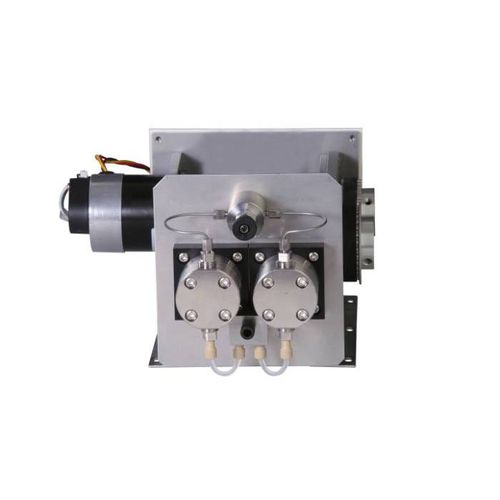

Theta 100 is a unit with two pump pistons connected in parallel. Flow-rates range is from 0.1 to 100 ml/min. and the maximum operating pressure is 15 MPa (2176 PSI). It is suited for preparative and flash applications in liquid chromatography, but also for solvent pressurizing by sample extractions, etc. Beneficiary is also the very stable running even at low flow rates. This pump is designed as an OEM / built-in unit. There is a possibility to use these pumps even in high-pressure gradient mode, where two, three, or four units can be controlled from a PC using RS232 or voltage. The control board is mounted on the unit's backside, therefore the installation is easy. Only connect the power voltage and RS232 and the pump is ready to work. When working with buffered solvents, it is possible to use pistons backwashing. Pumps are supported by the software ECOMAC and Clarity. Theta pumps aren't equipped with a pressure sensor.
