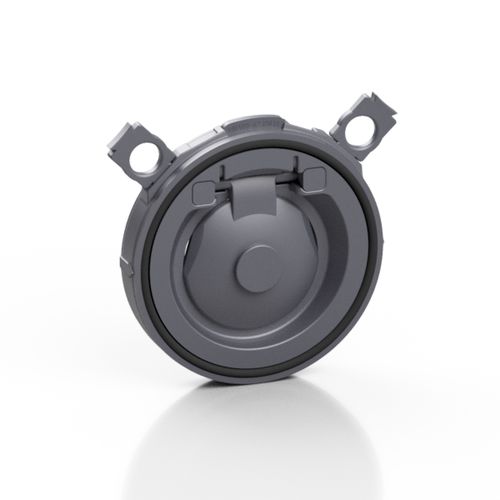

Swing check valve CKfor waterDINflange
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Fluid
- for water
- Connexion
- DIN
- Body
- flange, wafer
- Material
- PVC-U
- Valve plug seal material
- EPDM, Viton®
- Other characteristics
- spring, horizontal, top-mounted
- DN
Min.: 65 mm
(2.559 in)Max.: 200 mm
(7.874 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)- Flow rate
Min.: 1,451 l/min
(383.31 us gal/min)Max.: 17,306 l/min
(4,571.76 us gal/min)
Description
EFFAST CK wafer check valve is a non-return valve ideal for limited space installations. Thanks to the design of its disc, EFFAST CK valve can offer a greater opening angle.
Technical features:
Special design of the disc to offer a greater opening angle
Compatible with both EN/ISO/DIN and ANSI flanges
Easy installation between flanges, no spacers required. Locating ears ensure valve is installed level and centered between flanges
Sealing system with O-rings
Suitable for horizontal and vertical installation.
Available with disc spring (for installation in horizontal piping)
PVC-U ft for contact with potable water in accordance with regulations in force in Italy, France, Germany, Holland, U.K. and Scandinavian countries
