Trunnion valve PP-Hballmanualcontrol
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- control, shut-off
- Media
- for hot water, for potable water, for cooling water, for industrial water, for chemicals
- Body
- flange, threaded, weld, trunnion, chemical-resistant, PTFE, EPDM, PP
- Applications
- for industrial applications, for the chemical industry, process, for liquids, for heating, for air conditioning, food
- Number of channels
- 2-way
- Fluid specification
- for aggressive media
- Other characteristics
- ISO, chemical-resistant
- DN
Min.: 15 mm
(0.591 in)Max.: 50 mm
(1.969 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 100 °C
(212 °F)- Flow rate
Min.: 190 l/min
(50.19 us gal/min)Max.: 3,200 l/min
(845.35 us gal/min)
Description

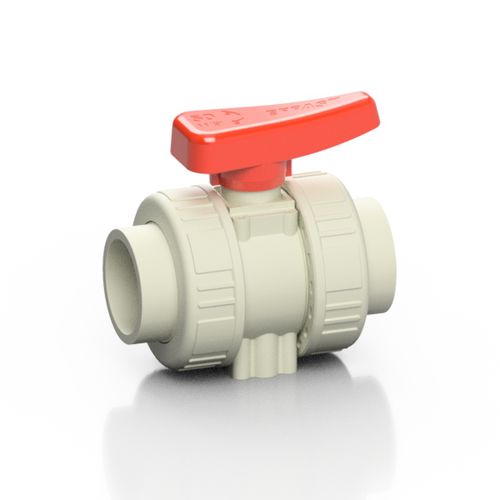

Thanks to its good chemicals resistance and the possibility o be actuated, EFFAST PP-H true union ball valve BK1 is ideal for chemical and industrial applications.
Technical features:
Connection system for weld, theaded and flanges joints
Valve body designed to be actuated
Floating full bore ball locked in place on both sides.
Fully round ball smoothed by special turning machines.
Machined stem seat.
PTFE ball seat.
EPDM or FKM O-rings.
Ergonomic handle with integrated tool for removing of union bushings and adjust the call seat carrier.
CE approval.
