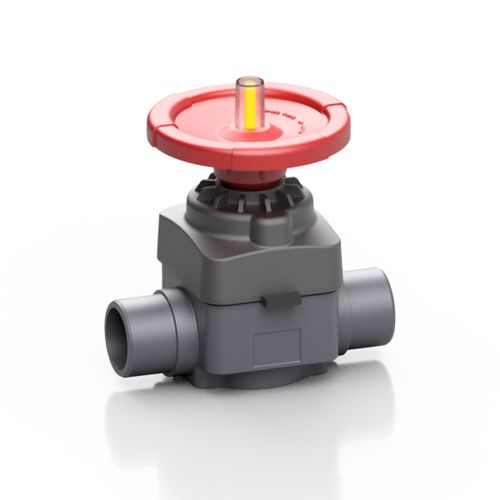

Diaphragm valve MVwith handwheelcontrolshut-off
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- with handwheel
- Function
- control, shut-off
- Media
- for water, for chemical products
- Body
- flange, weld, PTFE, EPDM, PVC-U
- Applications
- for industrial applications, for the chemical industry, for liquids, for marine applications, for swimming pools
- Number of channels
- 2-channel
- Fluid specification
- for abrasive fluids
- Other characteristics
- ISO, standard, chemical-resistant, with seal
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 46 m³/h
(1,624.47 ft³/h)Min.: 6 m³/h
(211.89 ft³/h)
Description
The MV diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids.
The chemical resistance of the valve is subject to the type of fluid, the temperature, the pressure, as well as the materials and seals of the valve.
Optimized pressure drop due to body design.
Stainless steel mounting inserts designed to support the valve. Same distance between the inserts for all DN.
Standard handwheel
EPDM, FPM, or PTFE diaphragm (EPDM backing).
