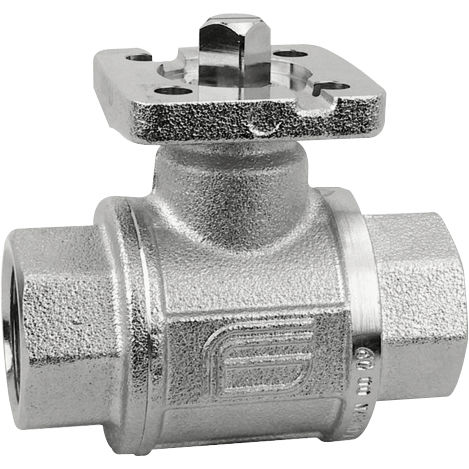

Ball valve LYBRA seriesmanualfor wateractuator
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Media
- for water
- Applications
- actuator
- Other characteristics
- standard
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar, 40 bar
(232.1 psi, 580.2 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -20 °C
(-4 °F)
Description
MAIN STANDARD FEATURES:
• CONSTRUCTION: CW617N.
• CONNECTIONS:
F/F Rp UNI ISO 7/1 (UNI EN 10226)
DIN 2999 parallel.
• PRESSURE: 40 bar.
• TEMPERATURE LIMITS: -20°C / +90°C.
• MOUNTING PLATE: ISO 5211.
• UPPER SEAL: Double stem packing with 2 O.R. and antifriction
sealing ring.
• SEATS: with special wrapping seals + O.R. for soft operation.
• OPERATOR: actuator.
GENERAL APPLICATIONS:
ON-OFF valve for: water and pneumatic plants, water, vacuum. For special application please check the suitability of the valve for the process and the required corrosion resistancy using the relevant table.
