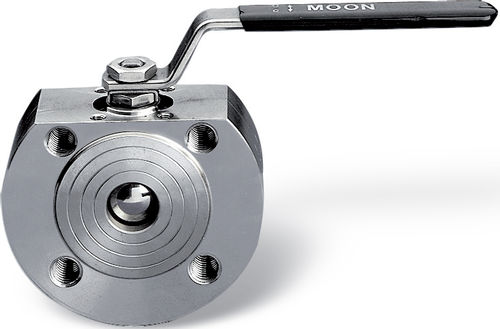

Ball valve MOON series

manualdistributionfor water

MAIN STANDARD FEATURES: • CONSTRUCTION: AISI 316 (body from casting) AISI 316L (body from bar)** AISI 304. • STANDARDS: BS EN ISO 17292:2004. • CERTIFICATION: FIRE SAFE according to BS 6755 – API 6 FA – API 607 DVGW for gas (-20°C + 60°C) PN16, TÜV for TA Luft (only PTFE). • SIZE RANGE: DN15 - DN100 (DN125, 150 / 200 model SELENE). • PRESSURES: PN16/40 DN15 - DN100 body from BAR PN16 DN40 - DN100 body from CASTING. • TEMPERATURE LIMITS: -20°C / +180°C (PTFE). • CONNECTIONS with flanges: UNI-EN 1092 and DIN2501 BL.1. • FLANGE DRILLING: metric. • STEM: Anti blow out with anti-static device. • ANTISTATIC DEVICE: starting from DN25 (upon request DN15-DN20). • SEAL: triple patented stem-packing with labyrinth effect and automatic adjustment by Belleville washers. • UPPER CONNECTION: ISO 5211. • OPERATOR: lever. Available colours: black, yellow. GENERAL APPLICATIONS: ON-OFF valve for: chemical products, food plants, distribution lines for gas, air, water. Suitable for average vacuum (see page 420), steam up to 200°C with PTFE+CARBOGRAPHITE SEATS. • Silicon free. SPECIAL EXECUTIONS: • PTFE+15% GLASS FIBRE: -20°C + 190°C. • PTFE + CARBOGRAPHITE: +200°C (optimum from 60°C to 200°C). • Peek for high temperatures up to +260°C. (optimum condition from 100°C to 260°C).
