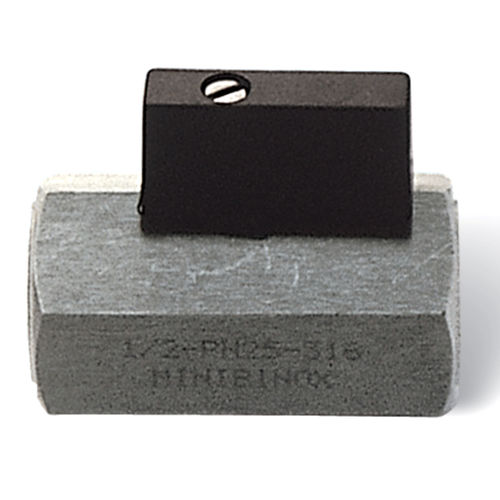

Ball valve MINIBINOX series
manualfor compressed airminiature

ball valve
ball valve
ball valve
Add to favorites
Compare this product

Go to the EFFEBI website for more information

Characteristics

Type
ball
Operation
manual
Media
for compressed air
Body
miniature
Applications
industrial, instrumentation, sanitary
Other characteristics
corrosion-resistant
DN

6 mm, 8 mm, 10 mm
(0.236 in, 0.315 in, 0.394 in)

Pressure

25 bar
(362.6 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 150 °C
(302 °F)

Description

MAIN STANDARD FEATURES: • CONSTRUCTION: AISI 316 • CONNECTIONS: F/F UNI-ISO 228 (gas parallel) M/F UNI-ISO 228 (gas parallel) • PRESSURE: 25 bar max • TEMPERATURE LIMITS: -20°C / +150°C. • STEM: Anti blow out. • OPERATOR: mini lever. • FINISH: satin. GENERAL APPLICATIONS: ON-OFF valve for: industrial, sanitary plants, compressed air, instrumentation. For special application please check the suitability of the valve for the process and the required corrosion resistancy using the relevant table. SPECIAL EXECUTIONS: • For further special requests please consult our technical/commercial service.

Catalogs

No catalogs are available for this product.

See all of EFFEBI‘s catalogs
