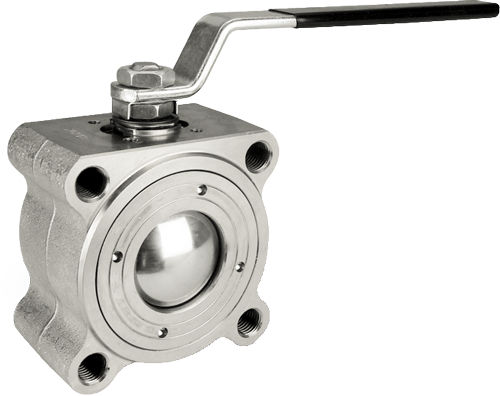

Ball valve MOON OT58 seriesmanualdistributionfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- distribution
- Media
- for water, for gas, for air
- Body
- flange
- Other characteristics
- standard, corrosion-resistant, anti-static
- DN
Min.: 15 mm
(0.591 in)Max.: 50 mm
(1.969 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 150 °C
(302 °F)
Description
MAIN STANDARD FEATURES:
• CONSTRUCTION: OT 58 CW617N.
• PRESSURES: PN16.
• TEMPERATURE LIMITS: -20°C / +150°C for fluids
-20°C / + 60°C for gas.
• CONNECTIONS with flanges: UNI-EN 1092 and DIN 2501 BL.1.
• FLANGE DRILLING: metric.
• STEM: Anti blow out with anti-static device.
• SEAL: triple patented stem-packing with labyrinth effect and automatic
adjustment by Belleville washers.
• UPPER CONNECTION: ISO 5211.
• OPERATOR: lever. Available colours: black.
GENERAL APPLICATIONS:
ON-OFF valve for: water plants, distribution lines for gas, air, water. For special application please check the suitability of the valve for the process and the required corrosion resistancy using the relevant table.
SPECIAL EXECUTIONS:
• Ball drilling.
• For further special requests please consult our technical/commercial service.
