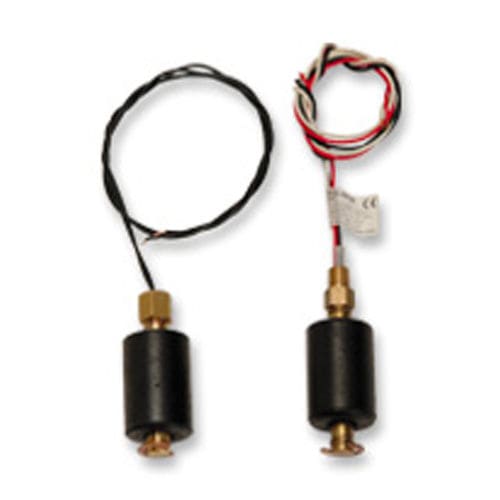

Magnetic float level switch LM seriesfor liquidsbrassthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Material
- brass
- Mounting
- threaded
- Other characteristics
- economical
- Process temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.04 psi)
Description
Low-cost Level Switches
Materials of constructionStem: brass Float: NBR Fitting: brass
Actuation points 1 with N.C. – N.O. – SPDT contacts
Mounting LMD - G1/8” taper (male) LM – G1/8” taper (female)
Electrical connection 500mm leads (standard)
Switching capacity LMD1/LM1 - 60W/VA LMD2/LM2 - 30W/VA
Current LMD1/LM1 - 0,8A (resistive) LMD2/LM2 - 0,5A (resistive)
Max voltage 220V – 50Hz
Fluid specific weight ³ 0.7
Fluid viscosity 150 cSt
Certification and approvals - -
Size LMD - 82mm LM - 73mm
Catalogs
Float level switches
63 Pages
