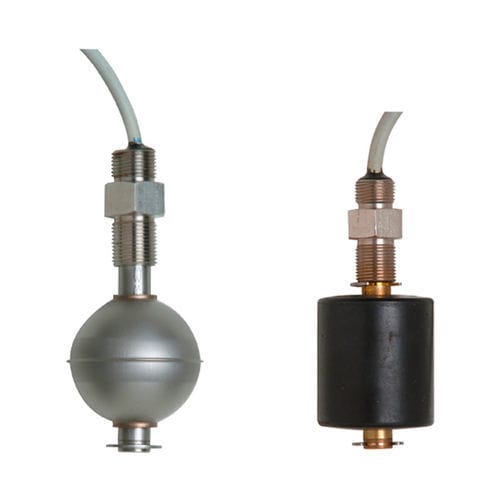

Magnetic float level switch LM seriesfor liquidsstainless steelbrass
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Material
- stainless steel, brass
- Other characteristics
- SPDT
- Process temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Process pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)
Description
Level Switches with Stop Ring
Actuation point - LM1 – 1 actuation point NC/NO contact / LM2 – 1 actuation point SPDT contact / LMM1 – 2 actuation points/floats NC/NO contacts
Electrical connection - Lead wires L. 500 mm (standard)
Switching capacity - LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current - LM1/LMM1 – 0.8A (resistive) / LM2 – 0.5A (resistive)
Voltage - 220V – 50Hz
Fluid specific gravity - 0.7 kg/dm3
Fluid viscosity - 150 cSt
Size - Max. lenght 2500 mm
