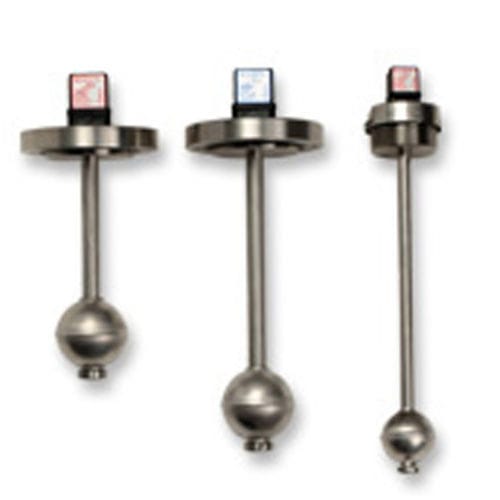

Magnetic float level switch LM1GIA

for liquidsATEXstainless steel

Actuation point - LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO Mounting - GIA – Flange Ø 92 GTIA – Thread G2″ Electrical connection - DIN 43650 – PG09 – IP65 Input capacity - Ci ~= 0 Input induttance - Li ~= 0 Input current - Ii 215mA Max. input power - Pi 0,75W Input voltage - Vi 30V Fluid specific gravity - 0.7 kg/dm3 Fluid viscosity - 150 cSt Certification - ATEX – II 1 G Ex ia IIC T6 Size - Max. lenght 2500 mm Safety parameters - intrinsic Note - Current and power values refer to a single switch connection or to the sum of the whole connected switches
