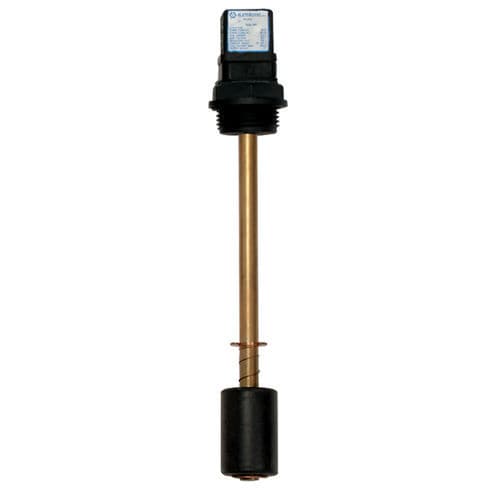

float level switch / for liquids / brass / IP65
LM1, LM2, LMM1 FPA – TPA

Add to MyDirectIndustry favorites
Compare this product
float level switch / for liquids / brass / IP65 float level switch / for liquids / brass / IP65 - LM1, LM2, LMM1 FPA – TPA
{{requestButtons}}

Characteristics

  • Technology:

    float

  • Medium:

    for liquids

  • Other characteristics:

    brass, IP65

  • Process pressure:

    Min.: 0 bar (0 psi)

    Max.: 10 bar (145.04 psi)

  • Process temperature:

    Min.: -10 °C (14 °F)

    Max.: 80 °C (176 °F)

Description

Materials of constructionStem: brass Float: NBR Mounting: thermoplastic
Actuation points LM1 – 1 actuation point N.C./N.O. contact LM2 – 1 actuation point SPDT contact LMM1 – 2 actuation points/floats N.C./N.O. contacts
Mounting FPA – Ø 54 flange TPA – G1” thread connection
Electrical connection DIN 43650 – PG09 – IP65
Switching capacity LM1/LMM1 - 60W/VA LM2 – 30W/VA
Current LM1/LMM1- 0,8A (resistive) LM2 - 0,5A (resistive)
Max voltage 220V – 50Hz
Temperature range -10°C +80°C
Max pressure 10 bar
Fluid specific weight ³ 0.7
Fluid viscosity 150 cSt
Certification and approvals - -
Size Max possible length 1500mm
