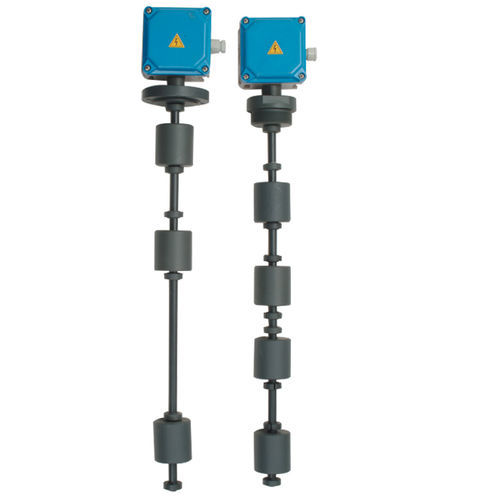

magnetic float level switch / for liquids / multi-point / threaded
LM3, LM4 GSPA – GPA – GTPA series

{{requestButtons}}

Characteristics

  • Technology:

    magnetic float

  • Medium:

    for liquids

  • Other characteristics:

    multi-point, threaded, flange, IP65

  • Process pressure:

    Max.: 5 bar (72.52 psi)

    Min.: 0 bar (0 psi)

  • Process temperature:

    Max.: 50 °C (122 °F)

    Min.: -5 °C (23 °F)

Description

Materials of constructionAll PVC
Actuation points LM3 – 3 actuation points/floats N.C./N.O. contacts LM4 – 4 actuation points/floats N.C./N.O. contacts
Mounting GSPA – G3/8” thread connection GPA – Ø 92 flange GTPA – G2” thread connection
Electrical connection GSPA: 500mm leads (standard) GPA/GTPA: 92x92mm junction box – PG09/IP65
Switching capacity 60W/VA
Current 0,8A (resistive)
Max voltage 220V – 50Hz
Temperature range -5°C +50°C
Max pressure 5 bar
Fluid specific weight ³ 0.85
Fluid viscosity 150 cSt
Certification and approvals - -
Size Max possible length 2500mm
