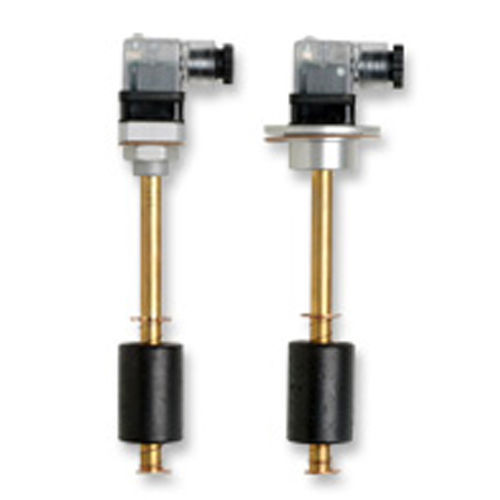

Magnetic float level switch LM1L series for liquidsbrassthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Medium
- for liquids
- Material
- brass
- Mounting
- threaded, flange
- Other characteristics
- IP65
- Process temperature
Min.: -10 °C
(14 °F)Max.: 80 °C
(176 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.04 psi)
Description
Level Switches with LED
Materials of constructionStem: brass Float: NBR Mounting: anodized aluminium
Actuation points 1 with N.C. contact
Mounting LA – M 18x1,5 thread connection LFA – Ø 52 flange
Electrical connection DIN 43650 – PG09
Switching capacity 60W/VA
Current 0,8A (resistive)
Max voltage 220V – 50Hz
Fluid specific weight ³ 0.7
Fluid viscosity 150 cSt
Certification and approvals - -
Size Max possible length 1500mm LED voltage: 24Vdc/Vac 110Vac 220Vac
