magnetic float level switch / for liquids / brass / threaded
LMV1 A – FA

Add to MyDirectIndustry favorites
Compare this product

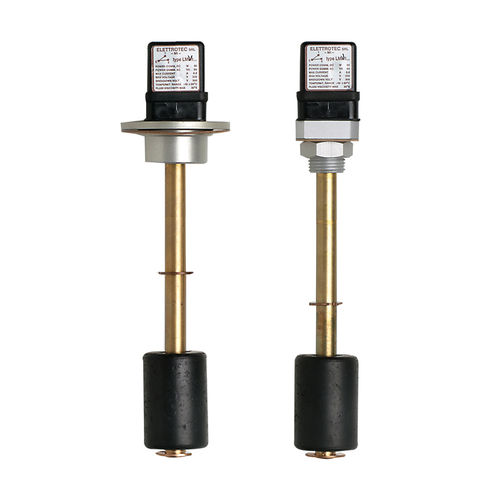

magnetic float level switch / for liquids / brass / threaded magnetic float level switch / for liquids / brass / threaded - LMV1 A – FA
{{requestButtons}}

Characteristics

  • Technology:

    magnetic float

  • Medium:

    for liquids

  • Other characteristics:

    brass, threaded, flange, IP65

  • Process pressure:

    Min.: 0 bar (0 psi)

    Max.: 10 bar (145.04 psi)

  • Process temperature:

    Min.: -10 °C (14 °F)

    Max.: 80 °C (176 °F)

Description

Materials of constructionStem: brass Float: NBR Mounting: anodized aluminium
Actuation points Minimum level: 1 actuation point N.C. contact Drain: 1 actuation point N.C. contact
Mounting A – M18x1,5 thread connection FA – Ø 52 flange
Electrical connection DIN 43650 – PG09 – IP65
Switching capacity 60W/VA
Current 0,8A (resistive)
Max voltage 220V – 50Hz
Temperature range -10°C +80°C
Max pressure 10 bar
Fluid specific weight ³ 0.7
Fluid viscosity 150 cSt
Certification and approvals - -
Size Max possible length 1500mm
